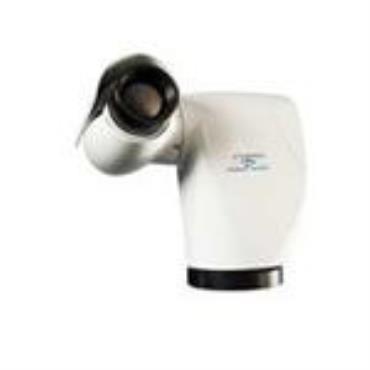

Cohu’s 5970SD series combines the advantages of thermal imaging, efficient H.264 compression, a proven variable speed positioner and advanced environment protection delivering a best in class thermal camera positioning system. The 5970SD is the latest addition to Cohu’s Helios family of products. Offering a choice of uncooled VOx 320p30 or 640p30 LWIR FPA detectors, with a wide selection of hard carbon coated lens. The 5970SD includes a variable hi-speed pan and tilt drive, with 360° continuous pan and ±90° tilt movements. Fast positioning speeds of up to 80°/sec, results in 180° movements in less than 2.5 seconds.

* Vox Microbolometer FPA Technology
* 640x480 and 320x240 Image Resolutions
* Wide Range of Lens Options
* Remote Motorized Focus Control
* Hybrid IP / Analog Operating Mode
* Dual H.264 / MJPEG Video CODECs
* NTSC or PAL analog video formats
* Web Server Configuration/Operation
* Variable Speed Positioning System
* Presets, Tours, Sector/Privacy Zones IP67 Camera Ingress Protection Nema TS2 Rated -34C to 74C operation
