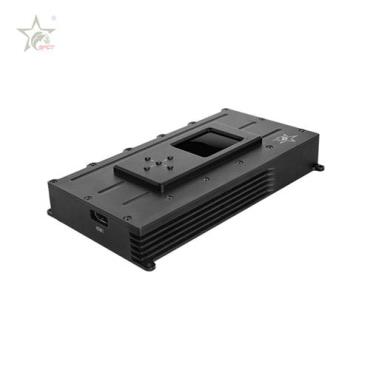

Model: SG-FDD2W

________________________________________________________________________________________________________________________

Robust mobile wireless IP Ehternet video data radio SG-FDD2W is a new generation digital 2 way duplex transceiver integrated with COFDM (Coded Orthogonal Frequency Division Multiplexing) modulation and FDD (Frequency-division duplexing) technology, and so have NLOS (non-line-of sight) diffraction and strong anti-interference ability. It has two different uplink & downlink carrier frequencies for signal transmitting and receiving, also compatible with super-linear digital predistortion, super narrowband (1MHz), low-latency and high-sensitivity capacity, that makes it ideal for long distance IP video data transmission.

As it’s lightweight and small size, It is mainly used for UAV surveillance and robots communication etc in public security, law enforcement, police, military defence system.

Main Feature

________________________________________________________________________________________________________________________

* COFDM & FDD modulation

* Great transfer rate for uplink and downlink

* Transparent IP Ethernet and serial data sync communication

* Dynamic AES encryption 128bits

* RF Narrowband 1/2/4/8MHz available

* Work well in NLOS fast moving condition

* Integrated design, super linear

* Small in size, lightweight and low consumption

* Easy deployment, Simple operation

Specifications:

________________________________________________________________________________________________________________________

Model SG-FDD2W

Power supply DC12V/1.5A

TX output frequency 300-3300MHz selection, step in 1MHz

RX output frequency 300-3300MHz selection, step in 1MHz

RF bandwidth 1/2/4/8MHz

RF power output 33dBm

Encryption mode AES128 bits(user-defined password)

Modulation COFDM & FDD

Transfer rate 2x30 Mbit/s uplink and downlink

RF connector SMA type *2

Ethernet Standard RJ45 port *2

Serial port RS232 serial port

Baud rate 115200bps maximum

LCD panel with keypad Easy to set the related parameters

Dimension 130x90x40mm

Weight 530g
