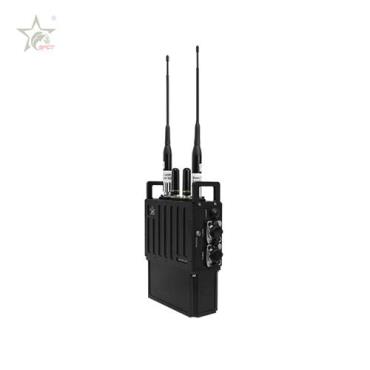

Model： SG-MS340

__________________________________________________________________________________________________________________________

Main features

1.Non-line-of- sight communication

2.Self-organizing network

3.Self-encrypting security algorithm

4.Frequency can be customized at rang of 100~1000MHz

5.High transmission rate: peak 11Mbps @ 10MHz

6.Ultra-strong receiving sensitivity: -92dbm @ 10MHz

__________________________________________________________________________________________________________________________

Military grade machine design, lightweight, for portable. Shell-case of metal material, military level designed and lightweight to take full consider of heat dissipation, security, harsh working conditions and other factors, and easy for deployment and operation.

We design and manufacture all COFDM products and the core technology and intellectual property rights in our own hands, so that some sensitive customers and projects can be assured of purchasing from us. And we accept of flexible customization based on user needs.

Product is widely used in public security, armed police, fire, disaster relief and other emergency communications systems; UAV aerial, electricity, water, waterway, border and other monitoring.

__________________________________________________________________________________________________________________________

Frequency: 340MHz / 580Mhz

RF Power: 1~3Watt (optional)

Bandwidth: 5/10MHz (optional)

Modulation: COFDM

Shoulder ratio: 30dBm>-45dbc

Networking capability: up to 16 nodes

Sensitivity: -92dbm@10MHz

Encryption: AES

IP video input:1080P IP Camera

Video bit rate: 3Mbps Max

Size: 200×130×50mm

Weight: Customizable

__________________________________________________________________________________________________________________________
