Main Feature

1. Provide up to 12Mbps of data flow, dynamic adaptive rate allocation technology

2. The baud ratre can Up to 921600bps maximum.

3. Smart settings,simple operation, easy to use;

4. Support transparent PTP&PMD network technology

5. Safety with AES 128 bit, can set user’s password;

6. Support non line of sight ( NLOS ) high-speed mobile transmission

7. Provide standard RS-232&RS-485 + RJ45 ethernet

8. Transmit/receive video audio,data and other multimedia signals simultaneously

9. Support high standards of Industrial and military level applications

10. The small volume, light weight, easy to carry, the radiating aluminum casing

11. High clear OLED digital display, the interface simple and easy operation

________________________________________________________________________________________________________________________

Specifications:

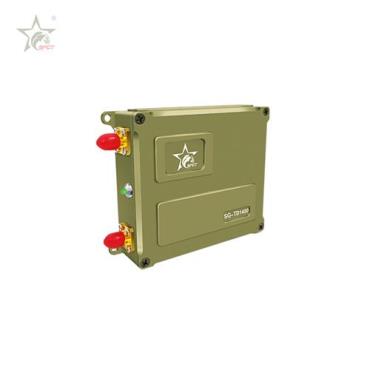

Model: SG-OF1400

Power supply: DC7V～17V, 10W consumption

Ethernet: 10/100BaseT、Auto-MDI/X、IEEE802.3 TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS

Output frequency: 770MHz/1400MHz

Output rf power: 37dbm (maximum)

Bandwidth: 4MHz/8MHz (adjustable)

Interface: RJ-45 ethernet ,RS232/RS485/RS422

Reolution: Support 720P and 1080P@50/60hz, 30 frames

Encryption mode: 128bit AES(or 256bit AES)

Error correction mechanism: 32bit of CRC,ARQ

Modulation: TDD_COFDM

Parameter control: Through OLED control panel to modify parameters

Working temperature: -40℃～85℃

__________________________________________________________________________________________________________________________
