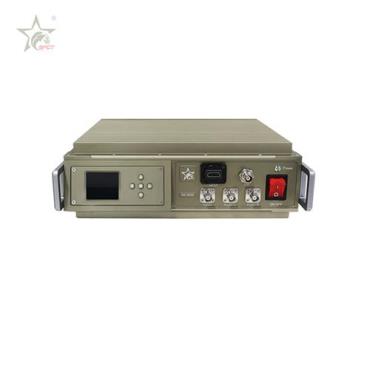

model: SG-HD25W

_____________________________________________________________

It’s a new powerful HD COFDM video audio transmitter, can up to 25W rf power output which support transmitting over a long distance.Using the core technology 4th generation mobile communication COFDM modulation and low delay full-HD 1080P(1920*1080) technique that can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles(NLOS)

Suitable for vehicles - cars, boat - boats, cars - a building, ship – a base station, aircraft –a buiding/vehicle and etc. high-definition moving video signal transmission, the carrier velocity greater than 450 km / h.Widely used in public security, armed police, fire, field armies,other military departments and broadcasting, urban management, civil defense, transportation, customs, oil, mining, water, electricity, geology, finance and other relevant state departments.

Features

_____________________________________________________________

*Full hd 1920*1080 resolution,support 1080P and 1080I;

*COFDM modulation,H.264 video compression mode;

*Built in with HDMI/HD-SDI and BNC interfaces;

*Support left/right stereo audio input and output;

*Low power consumption

*Strong heat resistance capacity with dual electric fans for better cooling capacity .

*Encrypted with AES128/256 bits

*PAL/NTSC self-adaption;

*low delay

Specifications

_____________________________________________________________

Frequency: 300-900MHz,1.2G/2.4G/4.4GHz (option)

open 100MHz space to customer

RF Power: 15-25Watt(adjustable)

Voltage: DC11-14.5V

Current:2.7A

Modulation: COFDM 2K QPSK

Constellation: QPSK，16QAM，64QAM

RF Bandwidth: 2/2.5/4/8MHz(adjustable)

FEC: 1/2 2/3 3/4 7/8

Guard Interval: 1/32 1/16 1/8 1/4

Data Encryption: AES

Max speed: 450km/h

Video Input: BNC: D1 standard definition

HDMI: HD1080I/1080P, 720P, 576, 480

or SDI：HD1080I/1080P, 720P, 576, 480

Audio input: Stereo Left/Right channels

Video compression format: H.264

Video Resolution: 1080p/1080i@30fps, 1920*1080 definition

RF Interface: N

Work environment: -40℃~70℃

Video Format: PAL/NTSC(self-adaption)

Transmission Distance: 15km NLOS distance(on ground station)

50km LOS distance (at coastal areas)

Over 150km from UAV to ground

Case Material: Aluminum (black)

Size: 267*175*68mm

Weight: 4.5kg
