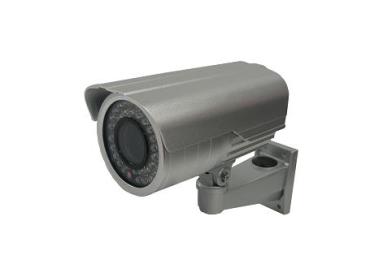

1/3" Varifocal Lens 40M IR OSD Day & Night Color Bullet Camera (215-8704)
Chowsons International Inc
Region: Taiwan
Update: 2009/09/02
INQUIRY
Key Specifications
Model: 215-8704
Image Sensor: 1/3” Color Sharp CCD
Effective Pixels: PAL:752(H)x582(V)/NTSC:768(H)x494(V)
Sensing Area: 4.9mm × 3.7mm
Horizontal Resolution: 520TVL
Signal System: PAL / NTSC
S/N Ratio: More than 52dB (AGC OFF)
Shutter Speed: 1/50 (1/60) to 1/100,000 sec
White Balance: AWB
AGC Gain Control: Auto
BLC: On
Day & Night: Auto
Minimum Illumination: 0.2 Lux / F1.2, 0 Lux with IR On
Video Output: 1.0Vp to p at 75ohm
Gamma: 0.45
Power Source: DC12V+10%
Power Consumption: 75mA (IR Off), 350mA ± 5% (IR On)
Lens Mount: 3.5-8mm Manual Varifocal Lens / F1.6
Infrared Luminary: 42pcs ?5 IR-LED
Illuminate Distance: More than 40M
Dimension: 75(Dia.) × 140(L)mm
Weight: 750g
Material: Aluminum
Waterproof rating: IP66
OSD: Optional
