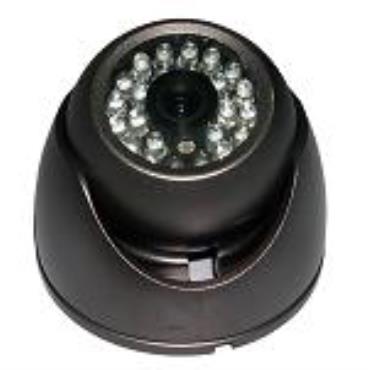

1/3" Day & Night 20M IR Color Doom Camera (215-8228)
Chowsons International Inc
Region: Taiwan
Update: 2009/09/02
INQUIRY
Key Specifications
Model: 215-8228

Image Sensor: 1/3” Color Sony CCD

Effective Pixels:PAL:752(H)x582(V)/NTSC:768(H)x494(V)

Sensing Area: 4.9mm × 3.7mm

Horizontal Resolution: 520TVL

Signal System: PAL / NTSC

S/N Ratio: More than 52dB (AGC OFF)

Shutter Speed: 1/50 (1/60) to 1/100,000 sec

White Balance: Automatic White Balance

Minimum Illumination: 0.8LUX / F1.2, 0LUX with IR On

Video Output: 1.0Vp to p at 75ohm

Viewing Angle: 45°

Power Source: DC12V+10%

Power Consumption: 120mA (IR Off), 400mA(IR On)

Lens Mount: 3.6/6/8mm Board Lens

Infrared Luminary: 24pcs ?5 IR-LED

Illuminate Distance: More than 20M

Dimension: 95(Dia.) × 85(H) mm

Weight: 525g

Material: Polycarbonate,
