Color screen design for either access control or time attendance management. Features an IP65 certified weatherproof exterior. IP65 protection allows system designers to place the terminal in both indoor and outdoor environments.

Features standard TCP/IP and communication between devices and the server.

It also supports Wiegand interfaces to provide maximum versatility. Has optional Power-over-Ethernet for flexible installation. Moreover, it has an in-built user-friendly Web Server. Software package Somac is provided.

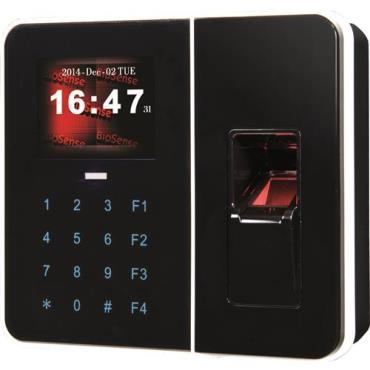

IP65 Rated Weatherproof Fingerprint Access Controller

FEATURES HIGHLIGHTS

Android mobile NFC

400 sets of the function key.

Anti-pass back / Anti duress.

Basic Time & Attendance (First IN / Last OUT).

Color screen with touch keypad.

LOGs data real-time PUSH.

Indoor and outdoor use (IP65 certificated).

Standalone, WEB-Based Management and network capability.

Support AUTO Get IP (DHCP) for easy setup.

GENERAL DATA

Software Application: SoMac / Browser / APP

Verification Mode: Fingerprint / Card / PIN

Proximity: EM / Mifare / HID

Fingerprint Template Capacity: 9,590

Fingerprint Sensor Type: Optical

Fingerprint Sensor Resolution: 500 dpi

1:1 Verification Time: < 600 msec

1:1,000 Identification Time: < 760 msec

User Capacity: 20,000

Function Keys: 400 SET

Time Sets / Time Zones / Group: 255 / 120 / 255 SET

Holiday Dates: 100 SET

Access & Event Logs / System Logs: 65536 / 1536

Inputs: 3 Inputs, (1) Exit button (2) Door Sensor (3) Fire Alarm

Relay Outputs: 1 output for Lock (COM/NO/NC)

Web Base Management: Yes

Support real-time log PUSH methodology: Yes

Wiegand Inputs: 26/34 bits Wiegand reader

Wiegand Outputs: 26/34 bits Wiegand reader

IP Mode: Static IP / AUTO IP (DHCP Client)

LED Indicators: Blue / Green / Red LED

Speaker: Indication: Optional

Buzzer: Single Tone

TFT Color LCD : 2.8"

Capacitive Touch Keys: 4 x 4

Anti-Tampering Switch: Yes

COMMUNICATION DATA

TCP / IP: 10 / 100 Base-T

Wiegand: 26 / 34 bits

ELECTRICAL DATA & CONDITIONS

Power Consumption: 500 mA ± 5%

Operation Voltage: 9 ~ 24VDC / 1A

Output Relay: 30VDC, 1A

Operation Temperature: 0°C ~ 65°C

Operation Humidity: 5% ~ 80% RH

PHYSICAL DATA

Dimension: 160.2 x 140.2 x 46.7mm

Weight: 0.6 kg

Installation: Indoor / Outdoor (IP65 weatherproof)

INTERNATIONAL STANDARDS & WARRANTY

Certification: CE, FCC, ROHS

Warranty: 2 Years (Fingerprint module: 1 year)

REMARKS

Web Server, supported by Chiyu Technology''s SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods

All products with 2 years warranty.
