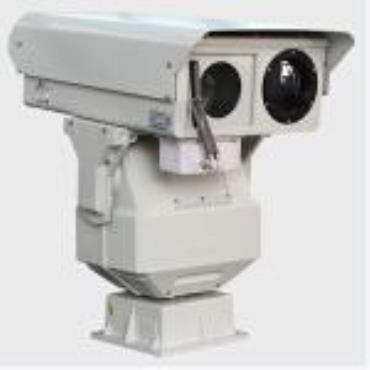

5th generation uncooled FPA Vox sensor，336*256 pixel(640*512 optional)

Spectral range:7.5μm～14μm, NETD:50mK, 50mm lens，field of view:6.5°×4.8° 10 pseudo color and B/W, B/W inverse, 2X digital amplification, AC24V/DC12V，waterproof connector

Hot target intelligent alarm function：

1. 255 level alarm threshold can be set up.

2. Target range can be set up, automatic identify different size.

3. Alarm target quantity can be set up, automatically select the most prominent target.

4. Two way alarm: video superposition alarm + data returned (or switch)

5. Optimization of front-end processing algorithm, based on frame analysis, alarm response time of 0.01S, no delay and information lost.

6. All alarm parameters and instructions can be through the remote video OSD menu Settings, without back end software, can be used with any video encoder.

7. Optional IP network coding transmission, provide free platform and SDK.
