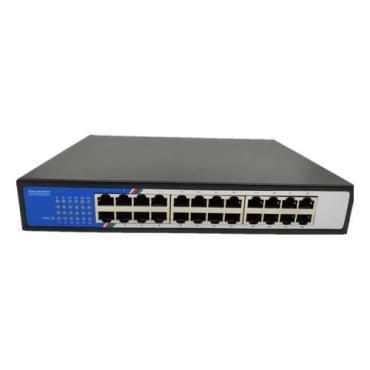

24*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.

Standard&Protocol

IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3ab

Cabling type

Category 5e or better

Port

24*10/100/1000M Base-T Ethernet ports (Auto MDI/MDIX)

LED

1*Power，24*Link/Act

Dimension

440mm×178mm×44mm , 19inch,1U height

Mounting options

Desktop or rack mount

Forwarding Mode

Store and Forward

MAC Address Table

8K

Switching Capacity

48Gbps / non-blocking

Forwarding capacity

35.7 mpps

Lightning Protection

6KV for power supply ，6KV for all RJ45 ports

Power Supply

100~240V AC，50/60Hz

Temperature

Operating|Storage temperature:-10°C~45°C | -40°C~70°C

Humidity

Operating|Storage Humidity:10%~90% RH（noncondensing） | 5%~90% RH（noncondensing）
