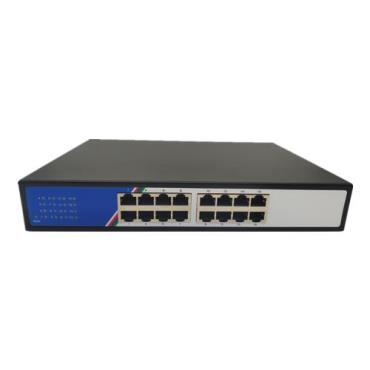

16ports Ethernet Switch is a desktop switch specially designed for families, offices, dormitories etc. 16* 10/100M auto-negotiation ports with full duplex rate up to 200Mbps bring blazing fast Internet access. Plug-and -play design makes installation easily in no time.

Standard&Protocol

IEEE 802.3、IEEE 802.3u、IEEE 802.3x

Cabling type

Category 5e or better

Port

16*10/100M Base-T Ethernet ports (Auto MDI/MDIX)

MAC Address Learning

Auto Learning & Auto Aging

Indicator

1*power indicator, 16*status indicator

Dimension

270mm*180mm*44mm( L*W*H）

Backbound Bandwidth

36Gbps

Packet forwarding rate

26.78Mpps

MAC Address Table

10K

Power Consumption

Standby: 7W

Maximum：16W

Forwarding Mode

Store-and-Forward

Temperature

Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Humidity

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package Content

1* Installation Guide

1 * 16-port Ethernet Switch

1* AC Power cable

1* Rack mounting kit
