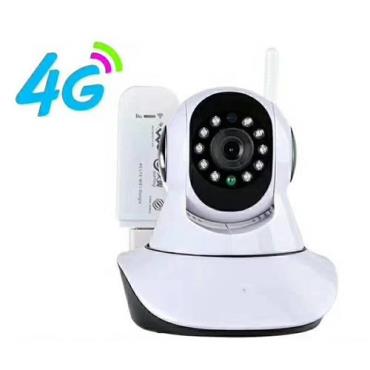

DLX-EHG 4G P2P WIFI PTZ HD IP camera is used for video surveillance, video sharing, baby monitoring and old person care etc. Support wireless/wired connection. Support PTZ and Rotation angles is Horizontal 355°,Vertical 120°. watch large scale scene, various resolutions and frame rates. Supports bi-direction audio (talkback) and alarm input/output. Support require authentication for watch video and data encryption transmission for safety.Support 3g/4g SIM card.

Adopts world's leading wireless networking architecture. End user no need professional knowledge of computer/telecom etc., just need control and monitor by smart mobile etc. Operating interface is simple, obvious and humanized. User can video monitor and control the camera at anywhere and anytime.

Features

• Megapixel HD CMOS sensor, Support resolution:1080P/960P/720P/(640*480)/(320*240)(160*120)
• Support P2P(peer to peer) transmission without router setting or mapping
• Built-in Stereo speaker, clear and high voice
• Support two-way pronunciation talkbacks, built-in microphone
• Support Max.128G SD for store photo and video. Has record management function, user can set time of automatic video recording, also can automatic video recording via motion detecting. Beside,user can remote download video files of SD card by network
• Support IR-CUT double-filter, IR range up to 10meters,Image no distortion and no color cast
• Support UPNP-plug and play function
• Support 3G/4G SIM card
• Built-in PTZ Rotation function, Horizontal: 355°,Vertical:120°
• Support Android, iPhone etc mobiles watch directly(better quality video when using H.264 format)
• Support IE, Firefox, Safar ect. browsers

Specification

CPU

Operation system：Windows, Linux, iOS, Android etc.

Processor：32Bit RSIC Embedded Processor

Sensor&Lens

Sensor：2Megapixel CMOS

performance：Automatic BLC, White Balance and Gain Control

Min. Illumination：Color:0.8Lux/F1.4, W/B:0.01LUX/F1.0

S/N：>80dB

Lens：F1.2/3.6mm

Video

Compression：H.265 Main Profile, MJPEG/JPEG Baseline

Resolution：1080P,960P,720P,VGA(640*480),QVGA(320*240)

Frames per sec.

1-25fps

Image adjustment

Saturation, brightness, contrast

Night vision

IR：11pieces Φ5 LEDs, IR range10M, Automatic IR-CUT

Audio

Compression：ADPCM

Input

Built-in microphone /AGC

Output

Built-in speaker

PTZ

Rotation angles

Horizontal: 355°,Vertical:120°,Rotation speed:1-70°/s

Network

Internet port

10Base-T/100Base-TX RJ45

Internet protocol

TCP/IP,HTTP,ICMP,DHCP,FTP,SMTP, PPPoE, RTSP

Wireless

Wi-Fi 802.11b/g/n and 3G/4G

Alarm

Motion detecting
