◊36X optical zoom(3.5~126mm), original SONY and TI chip, lossless image

◊Support 256 pre-set points and 8 cruise lines

◊Horizontal speed:0~360°continuous rotation 0.1°-250°/s, Vertical speed: 0~90° 180° auto flip 0.1°-130°/s

◊Support RS485(Alarm,audio optional),OSD, remote restart&change IP address by software etc

◊Support PELCO-P, PELCO-D

◊Support Onvif2.2, Hikvision, Dahua etc NVR

◊Built-in 6KV surge and lightning protection

◊Support Power recovery function, Guard Position etc

◊Built-in double IR-CUT filter, No color deviation

◊Adopts Long-life and SMART 10pieces Epistar IR Arrays, IR range up to 100meters

◊1.3MP 1280X960 or 2Mp 1920x1080 optional

◊7inch Double Aluminum housing, Weather proof,IP66

Specification:

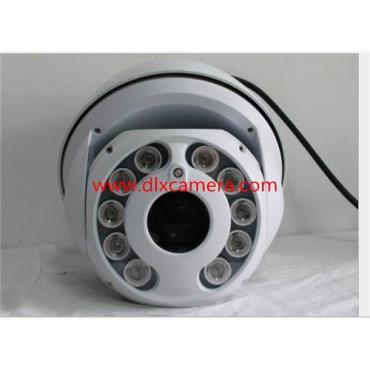

Model DLX-PIHA20

Sensor 1/2.5" CMOS TI368

Horizontal Resolution 1920X1080

Signal System PAL/NTSC

Lens 36X optical zoom, auto focus

Min. Illumination 0.5Lux/F1.6(color),0.09Lux/F1.6(black&white), 0Lux (IR ON)

IR 10pieces Epistar IR Arrays, IR range100M

BLC,AGC Auto

Scan System Scan between any two points, three speed rates adjustable

Video process H.264 code, Dual Stream, AVI format, 0.1M~6Mpbs adjustable

Video output 10/100M Ethernet RJ45 port

Electronic shutter 1/50(1/60)s to 1/100,000s

Rotation Speed Horizontal: 0.1°-250°/s, Vertical:0.1°-130°/s

Protocol ONVIF,RTSP,PPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,UPNP,FTP,DDNS

Baud rate 1200bps/2400bps/4800bps/9600bps

S/N Ratio >55dB

Power DC12V 5A, 40W(without heater)/70W（with heater)

Water proof IP66

Material Aluminum

Operating Conditions -25°C~70°C without heater, Humidity 90% or less (non-condensing)

Dimension 285x275x425mm

Weight 6kg
