◊ Adopts Embedded RTOS design,32bit DSP CPU, Integrated high performance video encode accelerator, Super high performance RTOS

◊ 2Megapixel 1080p

◊ Dual stream,Video code rate (64kbps-8Mbps) can be uninterrupted adjust

◊ Support video loss, Motion Detection, Probehead alarm

◊ Support TCP/IP, support IE browser/Android/Iphone etc.

◊ Support POE function

◊ Bi-direction audio,RS485,Alarm,USB,TF port, Analog video output port(BNC) etc optional

◊ Adopts double glass, the image more clear and bright

◊ Built-in double IR-CUT filter, No color deviation

◊ Adopts Long-life and SMART 2pieces big Epistar IR Arrays, IR range up to 50meters

◊ 2.8-12mm Auto-iris motorized lens

◊ Support BLC (backlight compensation), auto white balance, color reproduction and high, less noise, illumination lower, more stable performance

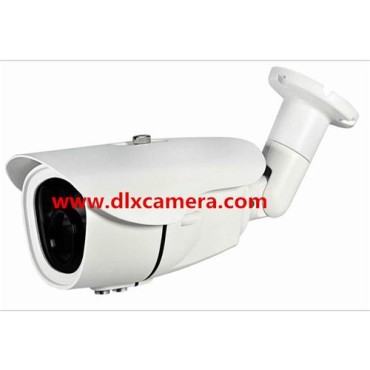

◊ Aluminum housing, Weather proof,IP66

Specification:

Signal System PAL/NTSC

Lens 2.8-12mm motorized lens

Min. Illumination 0LUX(IR ON)

IR 2pieces big Epistar IR Arrays, IR range 50M

BLC Auto

WDR Digital

AGC Auto

Electronic shutter 1/50(1/60)s to 1/100,000s

S/N >69dB

Gamma correction >0.45

Ethernet port 1 RJ45 Ethernet port ,10/100M,POE

Video process H.264 code, Dual Stream, AVI format, 64k~8Mpbs adjustable

Protocol ONVIF,RTSP,PPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,UPNP,FTP,DDNS

Power DC12V ±10%

Water proof IP66

Material Aluminum

Operating Conditions -18 °C - 50 °C, Humidity 90% or less (non-condensing)
