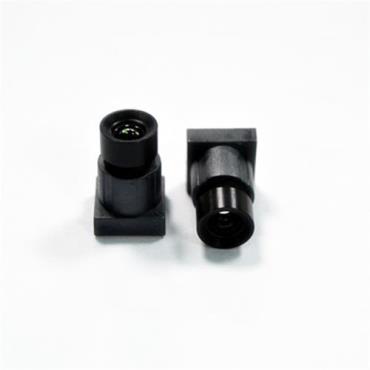

1/2.3" 5.6mm F2.6 12MP Megapixel M7x0.35 Mount Mini Lens for IMX577, 4K M7 metal lens for Automobile data recorder/face recognition/automobile active security system etc.

Model 123056MPF-M7

IMAGE FORMAT 1/2.3"

MAX IMAGE CIRCLE Ø 8.26mm

FOCAL LENGTH 5.6mm

F.O.V (D*H*V) 84°*66°*49°

DISTORTION -11%

APERTURE F2.6

RESOLUTION 12MP

MOUNT M7XP0.35

IRIS Fixed

B.F.L. 7.36mm

F.B.L. 6.59mm

T.T.L. 15.69 mm

R.I. >58%

C.R.A. <13°

DIMENSION Φ8×9.3mm

LENS COMPOMENT 4G+IR

CUT FREQUENCY AT 50% 650±10nm

Tips:

- ***MP: without IR-Cut filter

- ***MPF: with IR-Cut filter

- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
