CCTV Lens (CCOM Electronics Technology)
CCTV Lens (CCOM Electronics Technology)
Product Info

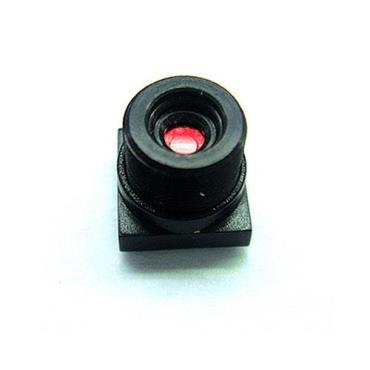

1/4" 3.7mm F2.8 Megapixel M7x0.35 mount non-distortion lens, 3.7mm M7 lens
CCTV Lens (CCOM Electronics Technology)
Region: China
Update: 2019/11/18
Key Specifications
1/4" 3.7mm F2.8 Megapixel 64degree non-distortion M7*0.35 mount lens for digital cameras/computer/electronic video devices, 3.7mm M7 mount lens


Model: 14037MPF-M7

  • SENSOR SIZE: 1/4"
  • MAX IMAGE CIRCLE: Φ5.0mm
  • FOCAL LENGTH(mm): 3.7
  • F.O.V.(D*H*V): 64°*50°*40°
  • RESOLUTION: MP
  • OPTICAL DISTORTION: <-1%
  • APERTURE: F2.8 (infinity)
  • MOUNT(mm): M7xP0.35
  • IRIS: Fixed
  • M.O.D.: 20mm
  • F.B.L.(mm) 1.00
  • T.T.L.(mm): 7.00
  • R.I. 75°
  • LENS COMPOMEMT: 4E+IR
  • DIMENSION: Φ7.0x6.0mm


For more lenses, please feel free to contact us at sales01@megapixellenses.com; camera.lens@videolenssupplier.com


ONLINE Store: http://www.videolenssupplier.com/sale-419517-1%2F4%22-3.7mm-F2.8-Megapixel-M7x0.35-mount-non-distortion-lens%2C-3.7mm-M7-lens.htm?iso=US
