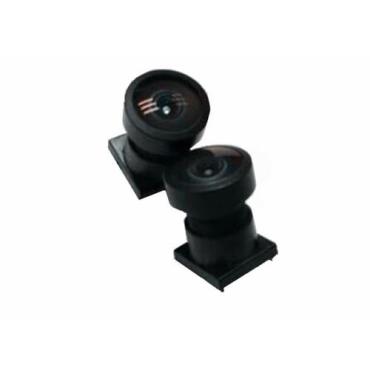

1/3" F2.2 1.08mm 12MP M7x0.35 mount 206degree Super Fisheye Lens for OV4689/OV9732/IMX132/OV7251
CCTV Lens (CCOM Electronics Technology)
Region: China
Update: 2019/11/09
Key Specifications
1/3" ~ 1/7.5" F2.2 1.08mm 12MP M7x0.35 mount 206degree Super Fisheye Lens for OV4689/OV9732/IMX132/OV7251, special wide angle lens for VR/Security/Doorbell/Vehicle cameras, OV7251 lens

Model: 130108MPF-M7

IMAGE FORMAT: 1/3" ~ 1/7.5"

MAX. IMAGE CIRCLE: Φ2.9

FOCAL LENGTH(mm): 1.08

F.O.V.(D*H*V): OV4689 206°*206°*206°; OV7251 141°*108°*78.5°

RESOLUTION: 12MP

APERTURE: F2.2

DISTORTION: OV4689 67.7%, OV7251 >85%

C.R.A.: OV4689 <20.26°, OV7251 <16.87°

DIMENSION(mm): Φ10x10.77

LENS COMPOMEMT: 6G+IR-Cut

Tips:

- ***MP: without IR-Cut filter

- ***MPF: with IR-Cut filter

- 650nm/850nm/940nm IR filter optional

- M12 or M7 mount option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com
