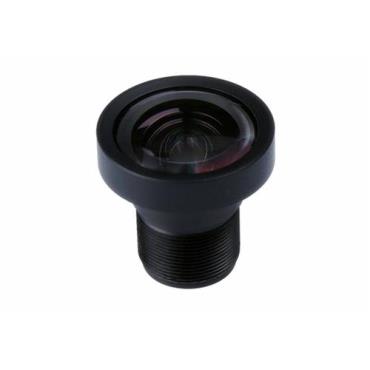

1/2.3" 3.65mm 16Megapixel S Mount M12 Low-Distortion Board Lens for aerial cameras DJI Phantom Typhoon H Drones Camera, 3.65mm non-distortion lens for IMX177 IMX117

http://www.ccom-tech.com/products.html

MODEL 1230365MPF

SENSOR SIZE 1/2.3”

FOCAL LENGTH(EFL) 3.65mm

F.O.V.(DxHxV) 94°x82°x60°

RESOLUTION 16MP

APERTURE F2.8

TV DISTORTION 1%

MOUNT M12xP0.5

B.F.L. 5.10mm

F.B.L. 4.26mm

T.T.L. 25.00mm

R.I. >90%

C.R.A. 7°

LENS CONSTRUCTURE 4G2P+IR-CUT

IR CUT T=50%@650±10nm

DIMENSION Φ20*20.7mm

Tips:

- This lens is suitable for IMX177 and IMX117 sensors.
