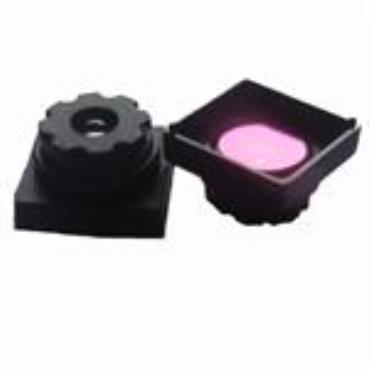

1/9" Non-distortion M4 mount lens for 1/9" & 1/10" VGA CMOS, 1.7mm, F2.8, 60degrees, 2P+IR, medical/endoscope lens

Model: M4-19171

SENSOR SIZE: 1/9"

MAX IMAGE CIRCLE Φ2.3mm

FOCAL LENGTH(mm): 1.71

F.O.V.:

Vertical 32.6°(Y"=0.5)

Horizontal 45°(Y"=0.70) 1/11"

Diagonal 54.5°(Y"=0.88) 1/10"

FOV 60.5°(Y"=1.0) 1/9"

FOV 37.7°(Y"=1.15) 1/8"

RESOLUTION: VGA

F/NO: 2.8(infinity)

T.T.L.(mm): 2.6

DISTORTION: <1.0%

RELATIVE ILLUMINATION 62% (Y"=0.88)

MOUNT(mm):M4*0.3P

IRIS: Fixed

M.O.D.(mm): 30

LENS COMPOMEMT: 2P+IR
