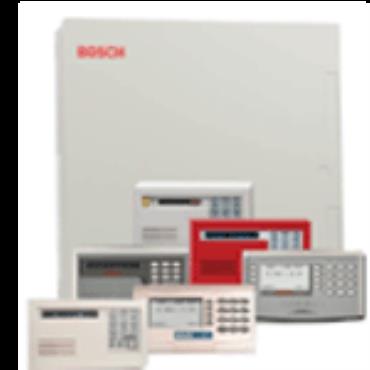

The D9412GV2 Control Panel provides an integrated solution for intrusion, access control, and fire alarm

system applications. Monitor alarm points for intruder or fire alarms while operating user keypads and other

outputs. The D9412GV2 Control Panel includes a communicator that sends events to selected public switched telephone network (PSTN) or IP network destinations through four programmable route groups.

Program all system functions on-site through a D5200 Programmer or remotely through Remote Programming

Software (RPS).

Add up to eight doors of access control using the optional D9210BLC Access Control Interface Module.

The D9412GV2Control Panel provides up to 246 individually identified points. Each point accommodates normally-open (NO) and normally-closed (NC) devices with end-of-line (EOL) resistor supervision. Program points for fire, fire supervisory, or intrusion applications.
