Key specifications:

8 fully programmable on board zones (expandable to 16 zones)

2 partitions + common

15 user codes

Built-in PSTN auto dialer:

CMS reporting with Contact ID format

Personal reporting with pre-recorded voice feedback

Double call feature to bypass fax/answering machine during call in

Multiple reporting languages (B.Malaysia, English, Mandarin)

6 arming modes: intelligent arm/away arm/day arm/night arm/force arm/holiday mode

1 set of auto arm/disarm timer

2 sets of auto on/off HA points timers

Auto on HA points for zone alarm triggered

Adjustable zone response for sensitivity

Group zone trip counter to prevent false alarm

Keypad lock feature to prevent password guessing

AC fail/siren fail/battery low monitoring

Supports up to 4 keypads, 2 HA modules (16 HA points)

Backup battery charger

External watchdog

485 communication bus

2 PGM outputs operate on events: arm/disarm, exit delay, zone alarm triggered, EM lock control

Listen-in module connection ready

PC Software interface ready

Multiple fuse protection: AC fuse, battery, aux supply, keypad, outdoor siren, indoor siren

Compatible accessories:

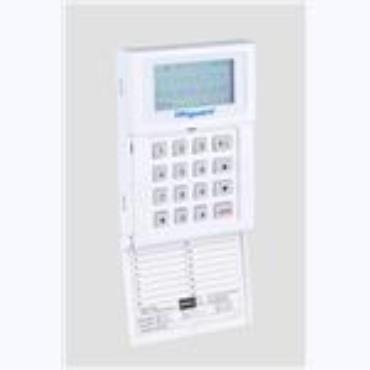

16-zone LED keypad

16-zone LCD keypad

Burglar HA06 home automation module (1-way switch)

Burglar HA07 home automation module (2-way switch c/w IR learning)

GSM-260 GSM module (16-zone)

Unsupervised wireless module

Supervised wireless module

PC Interface module

Technical specifications:

Input voltage: 240V AC

Standby current: 80mA

Backup battery: rechargeable battery 12V DC, 7Ah

Isolation transformer: 14V DC, 3A

Auxiliary power output: 12V DC, 1A (maximum)

Keypad power output: controllable 12V DC, 1A (maximum)

Siren output: 12V DC, 2A (maximum)

Strobe light output: 12V DC, 1A (maximum)

Dimension: PCB (175 x 140mm)

Metal casing (285 x 300 x 80mm)
