Bluguard L900 is streamlining a platform for intelligent security system, permitting all around 24/7 protections to your family at a competitive low cost

It embedded the tone feedback, call in/out functions and home automation control under single coherent system and optional GSM line as the backup line

Key features:

8 fully programmable on board zones

1 special on board zone

Panic button

Remote or key switch arm/disarm functions with siren/strobe light indication

8 user codes + duress code + 1 installer code

Built-in PSTN auto dialer:

CMS reporting with contact ID format

Personal reporting with tone feedback (beep sound)

Double call feature to bypass fax/answering machine during call in

Auto on HA points for zone alarm triggered

Adjustable zone response for sensitivity

Zone trip count feature to prevent false alarm

Keypad lock feature to prevent password guessing

Supports up to 4 keypads, 2 HA modules (8 HA points) and 1 GSM module

External watchdog

485 communication bus

Compatible accessories:

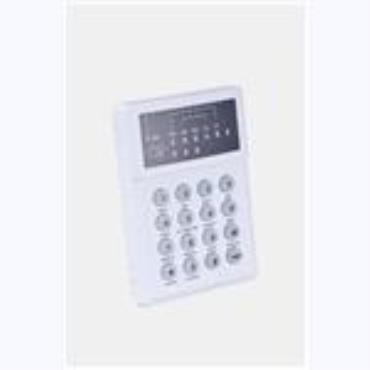

9-zone LED keypad

Burglar HA06 home automation module: 1-way switch

Burglar HA07 home automation module: 2-way switch with IR learning

Burglar GSM-200 GSM module (9-zone)

Unsupervised wireless or supervised wireless module

Technical information:

Input voltage: 240V AC

Standby current: 60mA

Backup battery: rechargeable battery

Isolation transformer: 14V AC, 3A

Auxiliary power output: 12V DC, maximum 1A

Keypad power output: controllable 12V DC, maximum 1A

Siren output: 12V DC, maximum 2A

Strobe light output: 12V DC, maximum 1A

PCB dimensions: 200 x 130mm
