Support with H.265 video compression;

Support VGA, HDMI full HD output simultaneously;

Support DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,3G,WIFI;

Support ONVIF; access third party;

Support Web, CMS, provide SDK development;

Support Mobile Phone Monitoring(IOS, Android);

Cloud Services, P2P, Alarm Information Push To Phone;

Support Multi-Language;

Product Specifications:

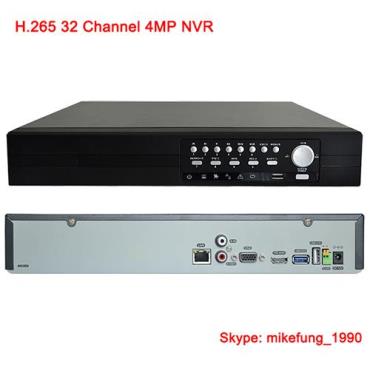

Model:NVR-8432W

Main processor:Hi3536

Operating System:Embedded Linux

System resources:Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Operator interface:16-bit true color graphic menu operation interface, support mouse operation

Preview:1/4/8/9/16/24/32

Video input (IP):32*4MP / 24*5MP / 16*1080P

Video compression:H.265 / H.264

Display quality:Max 4K

Playback quality:5MP / 4MP / 1080P

Decode:4*5MP / 9*4MP / 16*1080P

Motion detection:Support(depend on camera)

Audio compression:G.711A

Intercom:Support

Recording mode:Manual>Alarm>Dynamic Detection>Timing

Local payback:4*5MP / 9*4MP / 16*1080P

Search mode:Search by Time/Calendar/Event/Channel

Space occupation:Video: CIF 4~5G/day*channel, D1 8~10G/day*channel; 960H 12G~20G/day*channel 720P 20~30G/day*channel; 1080P ~40G/day*channel; Audio: 691.2M/day*channel

Record storage:HDD, Network

Backup mode:Network backup, USB hard disk, USB burner, SATA burner

Video output:1ch VGA, 1ch HDMI HD Output

Audio I/O:1/1

Alarm I/O:16/4

Network interface:1*RJ45 10M/100M/1000M Adaptive Ethernet port

USB interface:1*USB2.0 ports; 1*USB3.0 ports

HDD:4 SATA(Up to 6TB for each disk)

PTZ control:Control PTZ device by network

ONVIF:Support

Power supply:12V/6A

Power Consumption:<10W(Without HDD)

Work environment:Temperature:0℃-＋55℃, Humidity:10%－90%RH, Atm:86kpa－106kp

Dimension:370(Length) x 285 (Width) x 72 (Height)
