Support with H.265 video compression;

Support VGA, HDMI full HD output simultaneously;

Support DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,3G,WIFI;

Support ONVIF; access third party;

Support Web, CMS, provide SDK development;

Support Mobile Phone Monitoring(IOS, Android);

Cloud Services, P2P, Alarm Information Push To Phone;

Support Multi-Language;

Product Specifications:

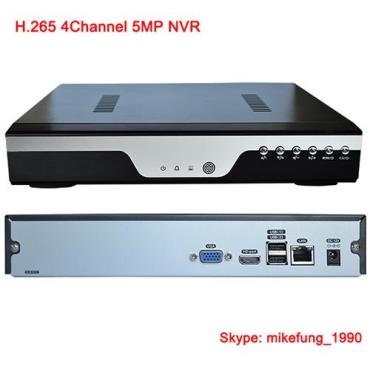

Model:NVR-8104

Main processor:Hi3798M

Operating System:Embedded Linux

System resources:Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Operator interface:16-bit true color graphic menu operation interface, support mouse operation

Preview:1/4

Video input (IP):4CH 5MP / 4CH 3MP / 8CH 1080P realtime

Video compression:H.265 / H.264

Display quality:Max 4K

Playback quality:5MP / 3MP / 1080P

Decode:1CH 5MP / 2CH 3MP / 4CH 1080P realtime

Motion detection:Support(depend on camera)

Audio compression:G.711A

Intercom:Nonsupport

Recording mode:Manual>Alarm>Dynamic Detection>Timing

Local payback:1CH 5MP / 2CH 3MP / 4CH 1080P realtime

Search mode:Search by Time/Calendar/Event/Channel

Space occupation:Video: CIF 4~5G/day*channel, D1 8~10G/day*channel; 960H 12G~20G/day*channel 720P 20~30G/day*channel; 1080P ~40G/day*channel; Audio: 691.2M/day*channel

Record storage:HDD, Network

Backup mode:Network backup, USB hard disk, USB burner, SATA burner

Video output:1ch VGA, 1ch HDMI HD Output

Audio I/O:0/0

Alarm I/O:0/0

Network interface:1*RJ45 10M/100M Adaptive Ethernet port

USB interface:2*USB2.0 ports

HDD:1 SATA(Up to 6TB for each disk)

PTZ control:Control PTZ device by network

ONVIF:Support

Power supply:12V/2A

Power Consumption:<10W(Without HDD)

Work environment:Temperature:0℃-＋55℃, Humidity:10%－90%RH, Atm:86kpa－106kp

Dimension:260(Length) x 220 (Width) x 45 (Height)
