16ch 5.0MP/4.0MP unreal-time;1080P real-time Encoding;

H.264+ (Quasi H.265) encoding, ultra-low bitrates;

Support CH1 Intelligent Video Analysis System;

1080P AHD/TVI/CVI/CVBS/IP Self-adaptive five signals;

Support VGA 1080P, HDMI 4K HD output simultaneously;

Support DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,3G,WIFI;

Support ONVIF; access third party;

Support Web, CMS, provide SDK development;

Support Mobile Phone Monitoring(IOS, Android);

Cloud Services, P2P, Alarm Information Push To Phone;

Support UTC, control PTZ and OSD through coaxial cable;

Support Multi-Language;

Product Specifications:

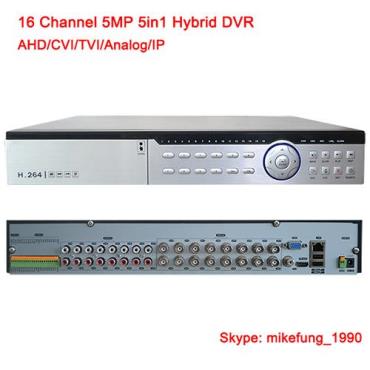

Model:SDVR-6416GLS

Main processor:2pcs Hisilicon Hi3531A + Nextchip NVP6134

Operating System:Embedded Linux

System resources:Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Operator interface:16-bit true color graphic menu operation interface, support mouse operation

Preview:1/4/8/9/16

Codec:H.264+ (Quasi H.265) / H.264

Monitor quality:VGA 1080P / HDMI 4K

Preview ability:16*5M@20fps / 16*4M / 16*1080P

Encode ability:PAL: 16*5MP@11fps(AHD)/ 16*4MP@15fps(AHD)/ 16*3MP@18fps(AHD)/ 16*1080P(5 in 1)

Decode ability:PAL: 8*5MP@11fps(AHD)/8*4MP@15fps(AHD)/8*3MP@18fps(AHD)/ 8*1080P(5 in 1)

Multi-mode input:Analog HD: 8*5MP@11fps / 8*4MP@15fps/ 8*3MP@18fps / 8*1080P@25fps(5 in 1)

Network only: 8*5MP / 16*3MP / 32*1080P

Motion detection:Each screen can be set to 192(16*12) detection areas; multi-level

sensitivity can be set (Limited local channel)

Audio compression:G.711A

Intercom:Support

Record mode:Manual>Alarm>Dynamic Detection>Timing

Local playback:8ch(local input mode)

Search mode:Search by Time/Calendar/Event/Channel

Space occupation:Video: CIF 4~5G/day*channel, D1 8~10G/day*channel; 960H 12G~20G/day*channel 720P 20~30G/day*channel; 1080P ~40G/day*channel; Audio: 691.2M/day*channel

Video storage:HDD, Network

Backup mode:Network backup, USB hard disk, USB burner, SATA burner

Video I/O:16ch BNC input / 1ch VGA, 1ch HDMI HD Output

Audio I/O:16/1

Alarm I/O:16/2

Network interface:1*RJ45 10M/100M Adaptive Ethernet port

PTZ control:1*RS485, Support kinds of PTZ protocols

USB interface:2*USB2.0 ports

HDD:4*SATA(Up to 8TB for each disk)

Wireless:3G, WIFI (extend via USB)

ONVIF:Support

Power supply:12V/6A

Power Consumption:<15W(Without HDD)

Work environment:Temperature:0℃-＋55℃, Humidity:10%－90%RH, Atm:86kpa－106kp

Dimension(mm):430(Length) x 366 (Width) x 77 (Height)
