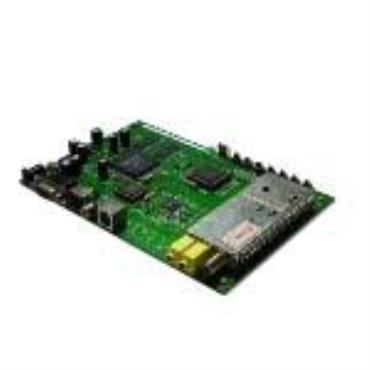

This solution supports video input with multiple video formats and can output with De-interlacing and Scaling effects. It can be used for most video conversion and processing applications.

Features:

a. Non-interlaced RGB output, applies to CRT and LCD MONITOR (analog output)

b. Supports PAL /D/K, PAL /I and NTSC TV standard, be able to receive CATV and radio vision program, receive full supplementation television, receive channel scope: DS1-57CH, Z1-38CH (870Mhz full channel TV channel). For NTSC tuner, it can receive standard Analog Cable TV channel 2 through channel 136.

c. Preset programmable channel: supports at least 100 channels and according to the size of EEPROM, can handle a maximum is 255.

d. Video input (include AV & S-video) support PAL, NTSC, PAL-M, PAL-N, NTSC-443, SECAM.

e. Full function for remote controller.

f. Simplified Chinese and English OSD display.

g. OSD background mode adjusts (NOP, OR, AND, XOR).

h. Support TV/EXTERNAL VGA switch.

i. Power saving mode at VGA input.

j. Audio input channel switch and volume control.

k. Output resolution :

- 800×600@60Hz,

- 800×600@75 Hz,

- 800×600@85 Hz,

- 1024×768@60Hz

- 1024×768@75Hz

- 1280×1024@60Hz.

l. Motion compensation adjustment.

m. Output resolution adjustment.

n. RF matching impedance: 75 ohms

o. Power consumption: <=8W

Applications:

a. LCD TV

b. DTV & Front Projection/Rear Projection/Progressive Scan TVs

c. TV to PC Monitor Format/Scan Rate Converter

d. Video Enhancer/TV Tuner box
