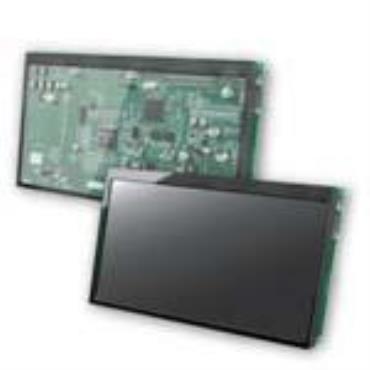

This graphic OSD design is a complete digital TFT panel application. It employs an AverLogic AL330 display SOC, which is used with a separate Graphical OSD chip set to provide superb graphical OSD effects and full menu capabilities. This design supports video input using CVBS, and YPbPr. The display is a 7" Hstar panel with touch panel capabilities, allowing you to manipulate the OSD menu directly on the screen. The OSD can also be controlled with the on-board keyboard or an IR remote control.

Features:

a. CVBS, and YPbPr.

b. NTSC, PAL auto detection.

c. Con/Bri/Hue/Sat adjustment.

d. 16M flash for OSD menu images and text library.

e. UART/IIC interface for external unit control.

f. OSD programmable blending, fade-in/fade-out, overlap, transparent visual effects.

g. Graphic OSD menus and effects.

h. Touch panel, keyboard, remote control.

i. Hstar TFT panel.

j. Supports 4:3 to/from 16:9 conversion.

k. Supports TFT panel from 3.5" to 10.2"

l. Supports resolution from 320*240 to 1024*768

Applications:

a. Medical Display Devices

b. Electronical Menus

c. Smart Home Control

d. Gaming

e. Industrial Display Devices
