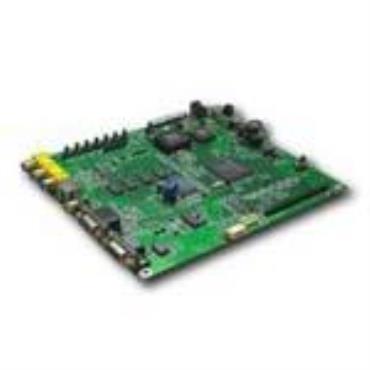

This solution supports Dual or Single Port output and accepts ITU-R 601 - 16-bit digital video and 24-bit digital RGB input. The OSD functionality provides easily accessible system controls. The embedded high-quality scaling engine and numerous functions facilitate use in various video conversion and processing applications. Functions are programmable through a 2-wire serial bus interface.

Features:

a. Supports analog RGB and CVBS/ S-Video/YCbCr input.

b. Frame Rate Conversion (FRC) from 50 Hz to 120 Hz

c. Independent Up-Scale in both Horizontal and Vertical directions

d. Built-in LUT for Gamma Correction and Color Adjustment

e. Dithering logic for Color Depth Enhancement

f. 2-Wire Serial Bus Interface

g. Built-in 2K Bytes OSD RAM and supports External OSD Font ROM

h. Frame Capture Mirroring support in Horizontal or Vertical directions

i. Auto-detect NTSC/PAL video input.

j. Supports Debug Mode for easy register access

Applications:

a. TFT LCD Monitor

b. LCD TV

c. LCD Projector with PC and/or TV Input

d. Other Flat Panel Displays

e. TV to PC Monitor Scan Converter

f. Progressive Scan TV
