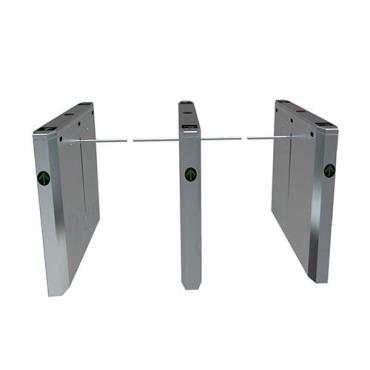

Slim drop arm barrier turnstile, drop arm barrier gate, automatic drop arm turnstile automatically opens for free access in case of power failure

Drop arm barrier turnstile JDYYZ-1 is an effecient contactless crowd control solution for upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere autonomous entry and aesthetics are important. It adopts high-quality DC brushless motor and advanced positioning technology, ensuring the movement of security turnstile in a fast, accurate, stable and quiete way with low-noise, low-power consumption, and a longer service life; In addition, drop arm barrier turnstile JDYZZ-1 provides single directional or bi-directional access and easily integrate any access control systems or device with dry contact output.

Features

1. Slim cabinet allow installation in compact spaces

2. Cabinet and lid options to blend with any environment

3. Drop arms retract quickly and smoothly to allow passage

4. Very intuitive for users and attendants

5. Simplified integration to access control and visitor management systems

6. Quick, precise and reliable arm movement – no need for constant adjustments

7. Multiple inputs to allow access control systems to implement operational mode changes

8. Barrier easily pushes open manually in case of power failure

9. Designed for continued use and maintenance-free performance

10. Multiple Access Modes (Card in/card out, free exit, and lane closed modes for either direction)

Applications

Upscale corporate lobbies

High rise building entrances

Luxury apartment complexes

Universities

Data centres

Sensitive sites

Parameters

Housing Material: #304 stainless sheet

Dimension: 1200 x 165 x 1000mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Lane Width: 600mm

Drive Motor: DC 24V brush motor

Pass Speed: 40 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication Interface: RS485

Rest Time after Power On: 3 seconds

Open Time: 0.2 second

Life Cycle: 3 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor (with shelter)
