Full height security turnstile, full height rotor turnstiles, motorised double full-height turnstile provide efficient crowd control solutions

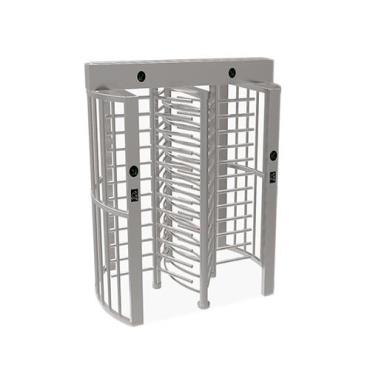

Full height security turnstile JDFHT-7 is a rugged, high-reliability crowd control solution for outdoor and indoor locations, and designed to control pedestrians entering or exiting secured areas where both the high security access control and pedestrian traffic management are vital, and widely used in public security departments, bank vaults, prisons and other key security scenarios. Full height security turnstile JDFHT-7 automatically relases the arm and allow the pedestrian to push before passing through the security turnstile upon the receipt of valid signal from access control system or manual switch

Features

1. Shock absorption and reverse rotation locking capabilities

2. Simplified integration to access control and visitor management systems

3. Single-user, un-manned automatic access control

4. Grant fast and efficient access for authorised people

5. Automatic self-centering prevents over or under travel of rotating section

6 .Low power consumption as well as low noise operation

7. Longer turnstile life, minimal to no maintenance, higher user satisfaction

8. Easily change turnstile passage mode

9. Support automatic reset function

10. Anti-reverse rotation during transit

Applications　

Public security departments

Bank vaults

Prisons

Military installations

Educational facilities

Stadiums

Parameters

Housing Material : #304 stainless sheet

Dimension: 2400 x 1350 x 2300mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 600mm

IP Rate: IP45

Pass Speed: 30 ~35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Gate open when power failure : Yes

Open Time: 0.2 second

Life Cycle: 5 million times

Working Temperature: -30°C~+70°C, Relative Humidity: ≤90%, no condensation

Working Environments: Indoor, outdoor (with shelter)
