Full height dual lane rotor turnstile, full height automatic turnstile, motorised double full-height turnstile flexibly integrates any type of access control system

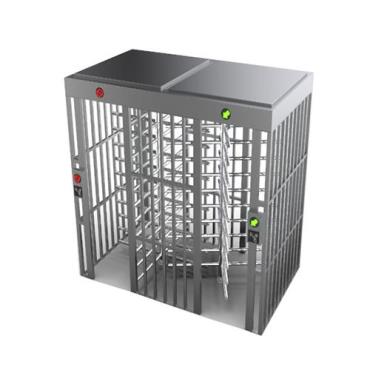

Full height dual lane rotor turnstile JDFHT-5 is made of high quality low maintainance stainless steel with morden-look apperance. It is of high compatibility for perfectly integrating various recognition systems, and providing single directional or bidirectional pedestrian access control for different applications. In addition, full height dual lane rotor turnstile JDFHT-5 will close the passage immediately after passing or after an adjustable hold-open time, and the passing time can be programmed. Upon power failure or fire system input, the automatic full height turnstile gate automatically releases to provide a clear exit passageway.

Features

1. Shock absorption and reverse rotation locking capabilities

2. Simplified integration to access control and visitor management systems

3. Single-user, un-manned automatic access control

4. Grant fast and efficient access for authorised people

5. Automatic self-centering prevents over or under travel of rotating section

6 .Low power consumption as well as low noise operation

7. Longer turnstile life, minimal to no maintenance, higher user satisfaction

8. Easily change turnstile passage mode

9. Support automatic reset function

10. Anti-reverse rotation during transit

Applications　

Public security departments

Bank vaults

Prisons

Military installations

Educational facilities

Stadiums

Parameters

Housing Material : #304 stainless sheet

Dimension: 2400 x 1350 x 2300mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 600mm

IP Rate: IP45

Pass Speed: 30 ~35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Gate open when power failure : Yes

Open Time: 0.2 second

Life Cycle: 5 million times

Working Temperature: -30°C~+70°C, Relative Humidity: ≤90%, no condensation

Working Environments: Indoor, outdoor (with shelter)
