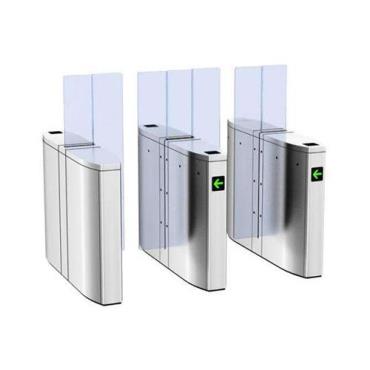

Speedlane slide security turnstile, sliding barrier turnstile gate, speedlane slide optical turnstile comes with transparent and elegant design

Speedlane slide security turnstile JDPYZ-1 is a classic type of optical turnstiles developd to control the access of pedestrians under high security requirements, which comes with high-density matrix of infrared beams and fast throghtput, effeciently guiding large groupes of pedestrians from entry through the authorization and onto the secured side In order. The baffle height of speedlane slide optical turnstile can be max 1800mm to make climing over them more difficuty for high security. Finally, speedlane slide security turnstile JDPYZ-1 operates in a fast, accurate, stable and quiet way with low-power consumption, and a longer service life.

Features

1. Intelligent user guidance

2. Accurate tailgating detection

3. Precision controlled movement of obstacles and detection of all obstructions

4. In case of power failure, doors will automatically retract for a clear passage, making fast evacuation

5. Dynamic and predictive algorithms ensuring top of the class performance for fraud detection

6. Precise, well-lit pictograms for intuitive user experience and ergonomic

8. Smooth integration of proximity, magnetic card readers, biometric scanners and other user authentication systems

9. Run at rather fast speed

10. Transparent and elegant design

Applications

Upscale corporate lobbies,

High rise building entrances

Luxury apartment complexes

Commercial office buildings

Government agencies

Educational institute

Parameters

Housing Material: #304 stainless sheet

Dimension: 1400 x 350 x 980mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Lane Width: 500mm~550mm

Drive Motor: DC 24V brush motor

Pass Speed: 35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication Interface: RS485

Rest Time after Power On: 3 seconds

Open Time: 1 second

Life Cycle: 3 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor (with shelter)
