Stylish optical speed gate turnstile, speed lane turnstile gate, speed gate security turnstile flexbly intergates any type of access control device with dry contact output

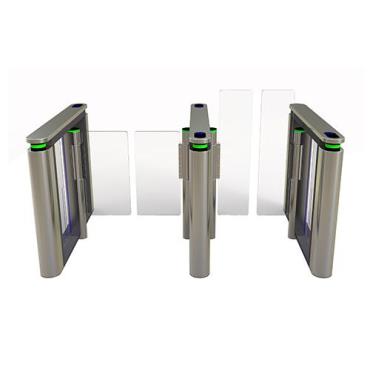

Optical speed gate turnstile JDSG-18 provides standard (600mm) and wide (900mm) lane widths to meet different application requirements, and the height of tempered glass panels 1.0m, 1.2m or 1.8m are available to provide increasing levels of security as required. Operating in a fast, smooth, silent and reliable way, speed gate optical turnstile JDSG-18 offers an ideal contactless solution for access control and comfortable passage in an intense flow of people, avoiding queues at the entrance and exit. And optical speed gate turnstile JDSG-18 is widely used in upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere else where autonomous entry and aesthetics are important.

Featurers

1.Intuitive approach detection

2. Slim tapered housing with ergonomic design and small footprint

3. Precision controlled tempered glass obstacles

4. In case of emergency the obstacles can be unlocked with a simple push to automatically open

5. Electro-mechanical locking to withstand forced entry attempts

6. Silent and smooth in operation

7. Stylish and flexible design able to virtually blend infinite aesthetics within architectural interior needs

8. Wider passages and higher obstacles

9. Glass obstacles up to 1800mm without or with straight or sloping overhang

10. Intelligent user guidance

Applications

Upscale corporate lobbies,

High rise building entrances

Luxury apartment complexes

Universities

Commercial office buildings

Government agencies

Parameters

Housing Material：#304 stainless sheet

Dimension： 1400 x 150 x 980mm

Power Supply： AC220V / AC110V, 50/ 60 Hz

Channel Width： 600~900mm

Drive Motor：DC 24V brushless motor or servo motor

Pass Speed： 35 ~45 persons per minute

Input Interface： Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction： Bi-directional

Communication interface： RS485

Gate open when power failure： Yes

Open Time： 0.2 second

Life Cycle： 5 million times

Working Temperature： -30°C~+70°C

Working Environments： Indoor, outdoor (with shelter)
