Security swing turnstile gate, swing barrier gate turnstile, automatic swing barrier gate detects tailgating and exact position of users by intelligent sensors

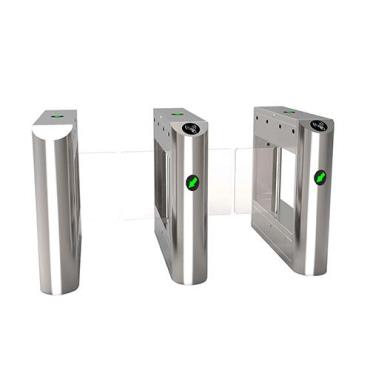

Security swing turnstile gate JDBZ-6 is controlled by logic sensors and a matrix of detection beams, by which any tailgating attempt, unauthorized entry or revese entry will be detected by the senosor and trigger a sound alarm, and deny illegal access effectively. The rapid throughput, effectivness and reliable operation enables the security swing turnstile gate JDBZ-6 to be used widely to various applications such as company foyers, data centers, government buildings and fitness centers. In case of power failure or emgergency, the automatic swing barrier gate lane will open and release the passage automatically to creat a free passage.

Features

1. Slim cabinet design for a smaller footprint

2. Detects tailgating and exact position of users

3. Intelligent drive system and pinpoint control of moving panels

4. Multiple operational modes including controlled passage, free passage and visitor

5. Supports very rapid throughput

6. Superior unauthorized passage and unauthorized presence detection

7. Standard and handicapped width lanes have same cabinet dimensions

8. Perfectly suited to any type of architecture

9. Fault visualization for easy to check on site

10. Widely used in various indoor and outdoor environments

Applications　

Industrial parks

Commercial buildings

Fitness center

Universities

Public transportation systems

Government facilities

Parameters

Housing Material： #304 stainless sheet

Dimension： 1400 x 280 x 980mm

Power Supply：AC220V / AC110V, 50/ 60 Hz

Channel Width： 600~900mm

Drive Motor： DC 24V brushless motor

Pass Speed： 30 ~35 persons per minute

Input Interface： Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction： Bi-directional

Communication interface： RS485

Gate open when power failure： Yes

Open Time： 0.2 second

Life Cycle： 3 million times

Working Temperature： -30°C~+70°C

Working Environments： Indoor, outdoor (with shelter)
