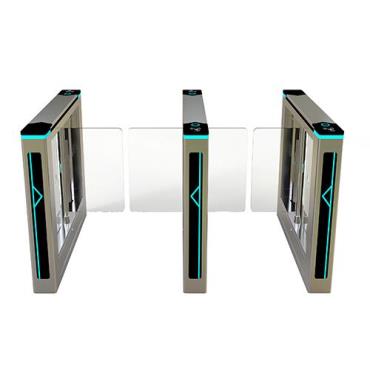

Swing arm optical turnstile, swing barrier gate turnstile, optical swing gate turnstile is supplied with slim cabinet design with a smaller footprint.

Swing arm optical turnstile JDBZ-23 runs in a fast, effecient and reliable way with low noise and low power consumption, adopting slim and stylish design blending into the aesthetics of the surrounding space. It comes with multiple physical barrier height and lane widths providing easy access to the disabled, wheelchairs, and people with large objects or deliveries, meeting both accessibility and security requirements. Finally, optical swing arm turnstile JDBZ-23 is flexibly compatible with all access control systems with dry contact output, and provides single directional and bi-directional access control modes.

Features

1. Slim cabinet design for a smaller footprint

2. Detects tailgating and exact position of users

3. Intelligent drive system and pinpoint control of moving panels

4. Multiple operational modes including controlled passage, free passage and visitor

5. Supports very rapid throughput

6. Superior unauthorized passage and unauthorized presence detection

7. Standard and handicapped width lanes have same cabinet dimensions

8. Perfectly suited to any type of architecture

9. Fault visualization for easy to check on site

10. Widely used in various indoor and outdoor environments

Applications　

Industrial parks

Commercial buildings

Fitness center

Universities

Public transportation systems

Government facilities

Housing Material： #304 stainless sheet

Dimension： 1400 x 200 x 980mm

Power Supply：AC220V / AC110V, 50/ 60 Hz

Channel Width： 600~900mm

Drive Motor： DC 24V brushless motor

Pass Speed： 30 ~35 persons per minute

Input Interface： Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction： Bi-directional

Communication interface： RS485

Gate open when power failure： Yes

Open Time： 0.2 second

Life Cycle： 3 million times

Working Temperature： -30°C~+70°C

Working Environments： Indoor, outdoor (with shelter)
