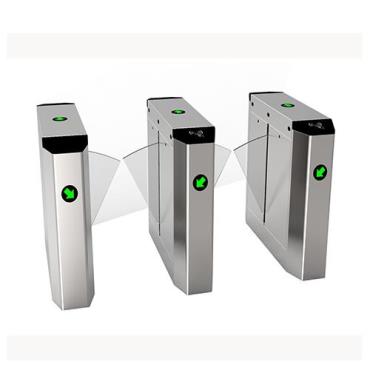

Flap barrier access control system, flap gate security turnstile, flap turnstile gate provides stable and efficient operation with lower noise

Flap barrier access control system JDYZ-20 is designed with modern and stylish look, meeting the latest architectural trends, widely used for corporate lobbies, office buildings, data centers, government facilities, stadiums. Supplied with quick throughput, flap barrier turnstile JDYZ-20 is also suited some applications with high traffic flows such as subways and public transportation terminals. Finally, it supports bi-directional access and simplified integrate any type of access control system with dry contact output. Any illegal intrusion, tailgating attempts and entries In the reverse direction will trigger sound alarm.

Features

1. Single directional or bi-directional access available

2. Ensure only one person enters for each authorized credential by tailgate detection

3. Wide integration of all types of identification systems.

4. High detection accuracy effectively prevents clipping and collision

5. Stable and efficient operation with lower noise

6. Create a seamless and nice entrance system to blend into most indoor environments

7. Provides flexibility and allows lanes to be handicap accessible.

8. Any illegal intrusion and reverse intrusion will trigger a sound alarm

9. Forcibly enter or tailgating attempts will be prompted by audible & visible alerts

10. High performance and robustness

Applications

Corporate lobbies

Office buildings

Data centers

Government facilities

Stadiums

Subways

Parameters

Housing Material: #304 stainless sheet

Dimension: 1400 x 300 x 1000mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 550mm

Drive Motor: DC 24V brush motor

Pass Speed: 35~40 persons per minute

Input signal optional: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Arm drop when power failure: Yes

Open Time: 0.2 second

Life Cycle: 3 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor (with shelter)
