Reliable flap barrier system, flap barrier turnstile, flap barrier gate turnstile operates in a fast, reliable, power-saving and silent way

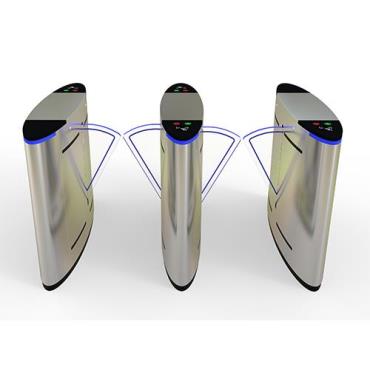

Flap barrier system JDYZ-8 is an effective pedestrian access control solution for the applications requiring ultra high speed access and medium levels of security, coming with infrared sensors to detect the passage and providing single dirtectional or bi-directional access. They are supplied with green and red LED lights to indicate lane directions. Green lights signify that passage from that direction is allowed while red lights signify no passage in that direction. In addition, flap barrier systm JDYZ-8 operates in a reliable, fast, quite and smooth way with low power consumption.
Features
1. Single directional or bi-directional access available
2. Ensure only one person enters for each authorized credential by tailgate detection
3. Wide integration of all types of identification systems.
4. High detection accuracy effectively prevents clipping and collision
5. Stable and efficient operation with lower noise
6. Create a seamless and nice entrance system to blend into most indoor environments
7. Provides flexibility and allows lanes to be handicap accessible.
8. Any illegal intrusion and reverse intrusion will trigger a sound alarm
9. Forcibly enter or tailgating attempts will be prompted by audible & visible alerts
10. High performance and robustness
Applications
Corporate lobbies
Office buildings
Data centers
Government facilities
Stadiums
Subways
Parameters
Housing Material: #304 stainless sheet
Dimension: 1400 x 300 x 1000mm
Power Supply: AC220V / AC110V, 50/ 60 Hz
Channel Width: 550mm
Drive Motor: DC 24V brush motor
Pass Speed: 35~40 persons per minute
Input signal optional: Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction: Bi-directional
Communication interface: RS485
Arm drop when power failure: Yes
Open Time: 0.2 second
Life Cycle: 3 million times
Working Temperature: -30°C~+70°C
Working Environments: Indoor, outdoor (with shelter)
