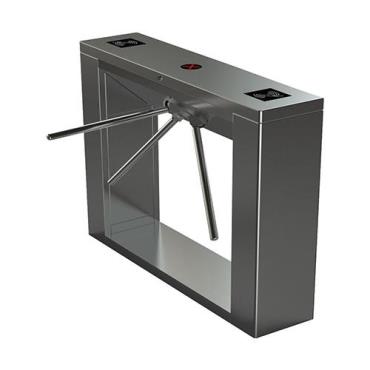

Outdoor waist high security turnstile, tripod securiry turnstile gate, access control turnstile provides ideal crowd control solution for any location that requires effective crowd management

Outdoor waist high security turnstile JDGD-4 series are ideal crowd control solution for any location that requires effective crowd management, slowing pedestrian traffic flow down for facilitating closer monitoring of ingress by security guards. They adopt the advanced positioning technology which precisely control the movement position of the barrier, and ensuring arm rotation more accurately and stably. In addition, security waist high outdoor turnstile JDGD-4 series are quick, reliable and easy to use and often used for access control in sports or training venues, public service stations and private companies.

Features

1. Simplified integration to access control and visitor management systems

2. Precisely control the movement position of the barrier, ensure it runs more accurately and stably.

3. Unique drive system and mechanical structure reduces the impact of external force greatly.

4. Single direction or bi-directional passage

5. Easy configuration and low maintenance

6. In case of emergency or power failure, centre arm will collapse to allow a clear passage

7. Strong and durable to last a lifetime of use

8. Smooth, precise, quiet, controlled, fast arm rotation

9. Easy configuration and low maintenance

10. Aesthetically pleasing and functional design for secure operations

Applications

Office buildings

Administrative buildings

Industrial installations

Banks

Authorities

Sports stadiums

Amusement parks

University facilities

Parameters

Housing Material: stainless sheet

Dimension: 1200 x 280 x 980mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 550mm

Arm Turning Angle: 120°

Pass Speed: 35~40 persons per minute

Input signal optional: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Arm drop when power failure: Yes

Open Time: 0.2 second

Life Cycle: 5 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor

Package: export standard carton
