Security half-height tripod gate turnstile, security entrance turnstile, pedestrian access control tripod turnstile provides efficient crowd control solutions for secured applications

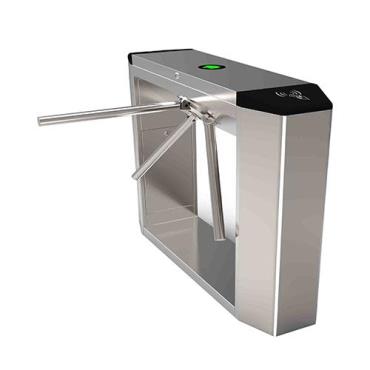

Security half-height tripod gate turnstile JDGD-18 is the aesthetically pleasing and rugged waist height access control turnstile for a variety of applications ranging from athletic facilities, cafeterias, and schools, to amusement parks, stadiums, and office buildings. Half-height tripod gate security turnstile JDGD-18 can be configured to allow access in a single direction or bi-directionally depending the actual requirements, and simplified integration to access control and visitor management systems. In the event of an emergency situation, the horizontal turnstile arm drops, providing a free passage path for exiting patrons.

Features

1. Simplified integration to access control and visitor management systems

2. Precisely control the movement position of the barrier, ensure it runs more accurately and stably.

3. Unique drive system and mechanical structure reduces the impact of external force greatly.

4. Single direction or bi-directional passage

5. Easy configuration and low maintenance

6. In case of emergency or power failure, centre arm will collapse to allow a clear passage

7. Strong and durable to last a lifetime of use

8. Smooth, precise, quiet, controlled, fast arm rotation

9. Easy configuration and low maintenance

10. Aesthetically pleasing and functional design for secure operations

Applications

Office buildings

Administrative buildings

Industrial installations

Banks

Authorities

Sports stadiums

Amusement parks

University facilities

Parameters

Housing Material: stainless sheet

Dimension: 1400 x 280 x 980mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 550mm

Arm Turning Angle: 120°

Pass Speed: 35~40 persons per minute

Input signal optional: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Arm drop when power failure: Yes

Open Time: 0.2 second

Life Cycle: 5 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor

Package: export standard carton
