0.8 ~3 seconds adjustable automatic traffic barrier, automatic car park barrier, automatic vehicle barrier equipped with reliable DC24V brushless motor.

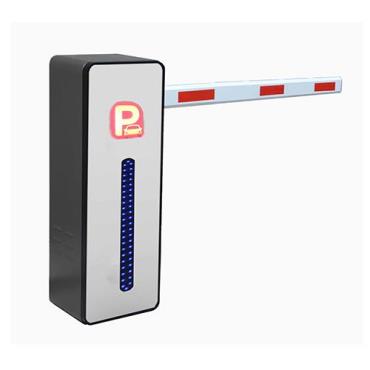

Automatic traffic barrier JDDZ-12 is an effective automatic traffic barrier that can be used as parking barrier gate for car park and security control. Adopting advanced DC24V digital brushless motor and update control technology, it provides variabe speed ranging 0.9~3 seconds for different applications, ensuring rapid opening times, easy handling, great reliability and long life span. Equipped with standard interfaces, automatic traffic barrier JDDZ-12 is flexible integration various access control system, and also can be controlled by remote control and push button.In addition, the UV-resistant and environmental-friendly powder coating finish of the compact housing has amazing performance of corrosion resistent, dust-proof, rainproof and rustproof.

Features

1. Programmable open & close gate arm speeds

2. Direct drive motor auto-reverses upon contacting obstruction

3. Reliability for high usage

4. Accurate and safe system operation with encoder

5. Auto-close function upon departure of the vehicle

6. Auto reverse feature in case an object has been hit

7. Quality product resistant to weather conditions

8. Low power consumption for economical operation

9. Easy to use and maintain

10. None corrosive housing made of powder coated cold-roll sheet

Applications

Car parks

Company grounds

Residential building

Toll stations

Large business complexes

Airports

Power Supply: AC220V/ AC110V±10%, 50/60hZ

Rated Power: 100W

Motor Type: DC 24V brushless digital motor

Motor Speed: 1500RPM

Boom Type & Length: Max 4 meters straight boom

Open Time: 0.8~3 seconds adjustable

Noise: ≤60dB

Error Action: ≤0.001%

Interfaces: IR sensor, vehicle detector, open/ close/stop

Life Cycle: 4.5 million times

Work Temperature: -35℃~60℃, Relative humidity:≤90%, no condensation

Dimension: 330*263*1000MM
