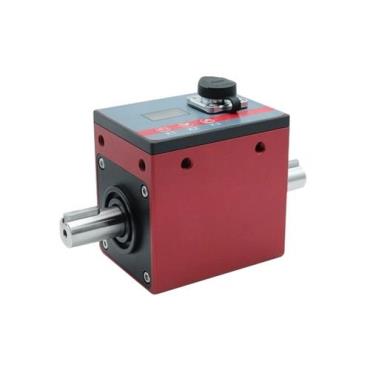

ATO Torque Sensor & Transducer Group supplies 50/200/300/1000 Nm torque sensors for a very wide range of fields, including the manufacturing and automotive industries. Our torque meters are used in test rigs and production control rigs, as well as in assembly or screw systems. We offer high-tech rotating digital torque sensors which can transmit a signal, by electrical contact or by contactless means, between the fixed section and the rotating section. Our expertise in these technologies allows us to measure torque at up to 15,000 rpm with a precision level of 0.1%. The rotary torque sensor has digital panel and operation keys for dynamic torque/speed/power display and controls directly.

https://www.ato.com/rotary-torque-sensor-10000-nm

SKU ATO-TQS-D03

Model ATO-TQS-DYN-200

Shipping weight 7~18kg

Capacity range * 0-0.1 Nm ~ 0-10000 Nm

Note: When selecting the capacity of 0.1~5 Nm, remark the shaft diameter by email.

Display LCD display (show torque/speed/power value)

Non-linearity 0.1%FS

Hysteresis 0.03%FS

Repeatability 0.03%FS

Temperature drift on zero ＜0.01%FS/℃

Temperature effect on output ＜0.01%FS/℃

Power supply DC 24V

Consumption current ＜150mA

Load resistance ≥2kΩ

Output torque ±5V, 0-10V, 4-20mA

Output speed 60 pulse per revolution

Response performance 1kHz

Signal delay 0.6ms

Ultimate overload 200%FS

Rated speed 10000rpm

Maximum speed 15000rpm

Maximum rotating angle 2.60*10rad (0.149°)

Inertia moment 0.38kg·cm

Natural vibration frequency 19.4kHz

Torsion constant 3.85*10Nm/rad

Elastic element material 17-4 stainless steel

Operating temperature -10℃~+50℃ (14~122℉)

Humidity 0~85%RH

Electrical connection 7 pin waterproof circular connector

Cable length 3m (Φ5mm)

Pin definition

1: Red, PWR (+24V)

2: Black, PWR (0V)

3: Green, SIG OUT (±5V/±10V/4-20mA)

4: White, SIG GND

5: Yellow, RS485 A

6: Blue, RS485 B

7: Shielded line
