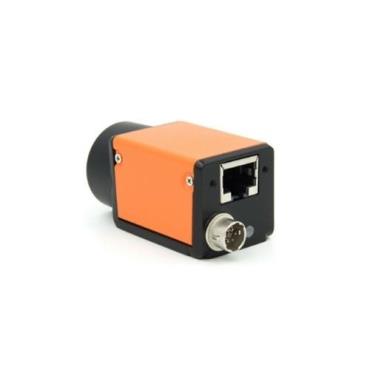

GigE Vision Industrial Camera, 1.3MP, 12 CMOS, MonoColor
ATO Automation Technologies Online
Region: United States of America
Update: 2018/08/20
INQUIRY
Key Specifications
- Support GenICam ™ and GigE Vision® Standard
- Compact design, to save installation space
- Rugged industrial housing design
- Built-in temperature, power supply real-time monitoring sensor
- Provide professional SDK for GigE machine vision camera
Specification
Model |
1300-75gm |
1300-75gc |
Resolution |
1280x1024 (1.3 Mega Pixel) |
Sensor Type |
CMOS |
Sensor Model |
PYTHON 1300 |
Format |
1/2" |
Pixel Size |
4.8μm x 4.8μm |
Maximum Frame Rate |
75fps |
Bit Depth |
8-bit or 10-bit |
Mono/Color |
Monochrome |
Color |
Exposure Time |
16μs~1s |
SNR |
>38dB |
Dynamic Range |
60dB |
Shutter Type |
Global Shutter |
Interface |
Gigabit Ethernet (100m Transmission Distance) |
Lens Mout |
Standard C-Mout |
Power Supply |
DC 6-24V, PoE |
Power Comsumption |
Approx. 3.1W@12V DC, Approx. 3.4W@PoE |
Hardware Control |
I/O input (external trigger), I/O output, Opto-couplers Isolation |
Programmable Control |
Image Resolution, RGB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, Raw, LUT, Black Level Correction |
Opearting System |
Support Windows XP/7/8/10
Support 32-bit and 64-bit operating system/Arm/Linux |
Operating Tempearture |
-30~+60℃ |
Storage Temperature |
-30℃~+80℃ |
Mass |
88g |
Dimension |
42x29x29mm |
