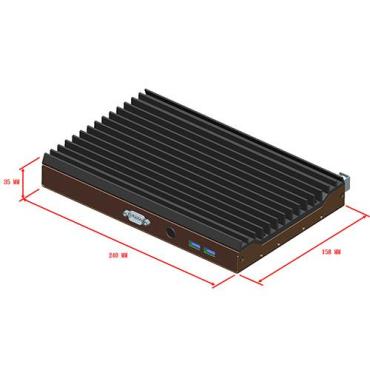

DEX3450-W, a Ruggedized Fanless chassis design & wide range operating temperature media player which is suit for industrial control application & harsh environment.

Intel Apollo Lake CPU and HDMI2.0 support for 4K2K@60Hz content playback.

.Supports Intel® Apollo lake platform technology, equipped with 14 nm Intel® Celeron® E3940 & J3455 processor. Support 1.35V DDR3L low-voltage memory with a maximum capacity up to 8GB.

.DEX3450-W build in 1 x HDMI2.0 video output to support 4K2K UHD resolution 3840x2160@60Hz, another one is HDMI1.4b support resolution 3840x2160@30Hz

.Great connectivity of dual Giga LAN & 4 x USB3.0 & 1 x DB9 RS232

.Fanless and no venting hole design, go with M.2 SSD to become a no spindle system it can improve the product reliability

.Support TPM2.0 (SLB9665TT2.0) compliant with FIPS level 2

.Support AT power mode, when Jumper AT1 set to 2,3 then system will boot up when power adapter turn on. (even without RTC battery)

.Support AiCU & OOB feature (optional), include features of SuperRTC, EDID emulation, OOB remote power ON/Off, OS recovery.

DEX3450-W Environment specification requirement:

.Operating Temperature: -20 ~ 60°C(-4 ~ 131°F)

.Non-Operating Temperature: -30 ~ 70°C (-22 ~ 158°F)

.Relative Humidity: 90%RH @ 60°C (non-condensing)

.Operating Vibration: 1Grms, random, 10~500Hz, X,Y,Z 3Axes, 0.5hr/Axis

.Non-Operating Vibration: 2Grms, random, 10~300Hz, X,Y,Z 3Axes, 1hr/Axis

.Operating Shock: 8G, half sine, 11ms duration, X,Y,Z 3Axes, 6Direction, 3 shocks/direction

.Non-Operating Shock: 50G, half sine, 11ms duration, X,Y,Z 3Axes, 6Direction, 3 shocks/direction
