CCD type 1/3”　Interline mode

Effective pixels 771(H)×492(V) 753(H)×582(V)

Synchronization Internal Synchronization

Scanning 2:1　Interlace

Video output 1Vp-p 75Ω

Horizontal resolution Above 580TVL

(brightness signal , the center of lens)

Minimum illumination 0.01 lx

（Video output 25IRE, AGC ON,F1.2, increased electronic sensitivity off）

min illumination （Electronic sensitivity increases） 0.0004 lx F1.2 25IRE(Electronic sensitivity increases to ×64)

Electronic sensitivity increases Slow camera shutter can be set

Day & Night function Chrominance Suppress

Action illumination: about 0.15lx

XDR wide dynamic processing by software processing to achieve wide dynamic image

S/N ratio 48dB or more (such as 52dB) (AGC OFF, WEIGHT ON)

Electronic IRIS 1/60～1/120,000(sec) 1/50～1/120,000(sec)

Horizontal sync frequency 15.734(kHz) 15.6250(kHz)

Vertical sync frequency 59.94(Hz) 50(Hz)

Power supply DC12V

Current consumption Max 180mA Max 180mA

White Balance Control ATW/AWB

Electronic shutter ALC(1/60,FL1/100,1/120,1/250,1/500,1/750,1/1000, ALC(1/50,FL(1/120,1/250,1/500,1/750,1/1000,

1/2000,1/4000,1/10000)(DIP/OSD mode) 1/2000,1/4000,1/10000)(DIP/OSD mode)

Lens IRIS output DC IRIS

gamma correction About 0.45

AGC On(+24dB Max)/Off

Backlight Compensation (BLC) ON/OFF Metering (DIP method), 48 group partition may be set (OSD mode)

Motion picture Search function 48 set animation settings may partition (OSD mode)

Privacy function With (OSD mode)

Other function digital zoom function, positive/negative (OSD mode), horizontal, vertical inversion (DIP / OSD mode)

Storage temperature humidity -20℃～+60℃　humidity below 90%

Operating temperature humidity -5℃～+45℃　humidity below 80%

Dimensions 68W*60H*148Dmm

Weight About 350g

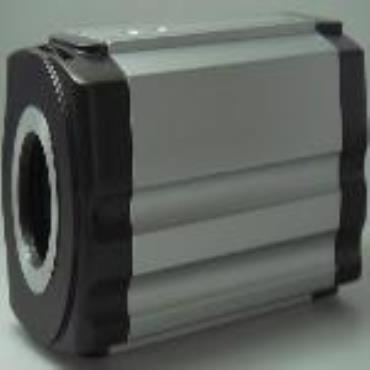

SC-7502D

Surveillance through fog, rain, haze, smog

The first in worldwide

HD Intelligent Photoelectric through fog, image intelligent correction camera, for Dedicated high-end market, DC12V adaptive, +4$ add AC24V.

Summary:

Automatic identification of the concentration of fog in images, automatic defogging image adjustment, on the foggy, rainy day, Margaret, smoke and other bad weather, and automatic image correction, coupled with special optical treatment, get a clear image.

Usage:

Can be widely used in a variety of reasons (fog, rain, Margaret, smoke and other bad weather, dust , dirty of shield, backlight, etc.), which leads to the image becomes bad image white, gray image, image contrast and so bad surveillance environment ...

** In fact, this camera should be a very common product, almost suitable for all outdoor applications in monitoring situations.

Features:

Auto Fog Penetration Technology

WDR (Powerful Wide Dynamic Range)

True Day/Night Mode with IRC/IRP Filters

3D-DNR (3D-Digital Noise Reduction)

Ultra High Resolution above 580TV Lines

Low illuminations of 0.01 Lux at F1.2
