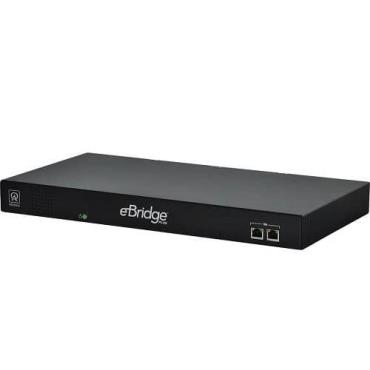

Altronix eBridge800E is an all-in-one head-end solution for upgrading coax to IP that combines a PoE+ switch and EoC Receiver into a single integrated unit for upgrading existing coax infrastructure and deploying the latest IP devices. This 8-Port Managed EoC Receiver with Integral PoE+ switch provides 30W full power per port (240W max). Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control and report power and diagnostics from anywhere.

Input

*115VAC 60Hz, 3.25A or 230VAC 50/60Hz, 2.0A.

Power Output

*8-ports maximum power: 30W full power per port (PoE+) - 240W total power.

*Generates PoE/PoE+ up the coax to eBridge transceiver.

Ethernet over Coax

*Speed: 10/100BaseT, half/full duplex, auto negotiation.

*Each port rated at 100Mbps at distances up to 300m.

*Connectivity: BNC, RG-59/U or similar.

Ethernet Uplink Ports

*Two (2) 1Gb uplink (100/1000 Mbps).

*Connectivity: RJ45, auto-crossover.

*Wire type: 4-pair CAT5 or better structured cable.

*Distance: up to 100m.

LED Indicators

*Blue LED - Coax link connection.

*Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.

*Green LED - Power.

*Battery Backup

*Built-in charger for sealed lead acid or gel type batteries.

*Automatic switch over to stand-by battery when AC fails.

Environmental

*Operating Temperature: - 10° C to 50° C (14° F to 122° F).

*Storage Temperature: - 30° to 70° C (-22° to 158° F).

*Humidity: 20 to 85%, non-condensing.

LINQ Technology

*SSL (Secure Socket Layer) security encryption.

*User level security.

*Built-in IP management allows for remote camera reset and monitoring.

*Provides local and/or remote access to critical information via LAN/WAN

*Email and Windows Dashboard Alert notifications report real-time diagnostics.

*Event log tracks history.
