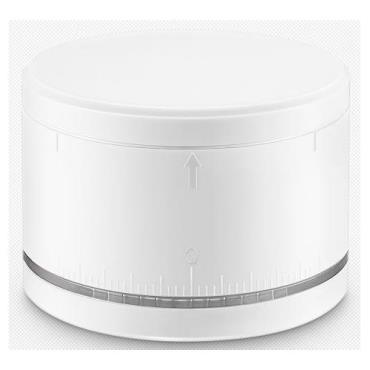

H-GW-WIFI

Bamboo Gateway Base Unit with WIFI

Parameters

Dimension：69.8mm37.8mm

Operating voltage：DC12-28V

Operating current：≤100mA（Single main module）

Maximum support power:10W（OSSI DC5V/2A）（with stacking modules）

Radio frequency：Full-Duplex RF 433MHz

Transmission distances：≤180m（LOS:Line of sight）

Alarm output：RF

Anti-Tamper output:NC/RF

Communication protocol: Contact ID

Working temperature：－10℃~55℃

Relative humidity：≤95% （Non-condensation）

Features:

The main function:

System management and settings

2. Up to 8 function modules can be stacked. supply 5V2A power to the stacked module.

3. Manage 54 sub-control modules (H-HUB-RF / N-LINK-RF, etc.).

4. Support LAN and wireless connection.

5. Support OTA system upgrade firmware.

6. System settings can be remote backup and recovery parameters (Subsequent firmware upgrade).

7. Optional voice functions: PSTN transmission function (needs configure N-COM-PSTN); GSM transmission function (needs configure N-COM-GSM).

8. Optional Network Spare Link Module: N-COM-3G.

9. Support APP / APK management and control.

10. Optional battery backup module (A-BB-4500).
