● Ultra-clear, stylish appearance
● 10” capacitive touch screen with energy saving mode
● Built-in 1MP CMOS camera
● Built-in Wi-Fi (2.4GHz, IEEE802.11 b/g/n)
● Reception of a HD picture from the door communicator
● Two-way communication with other units in the network, based on SIP v2.0 protocol
● Powered by PoE or external source
● Tamper resistant design

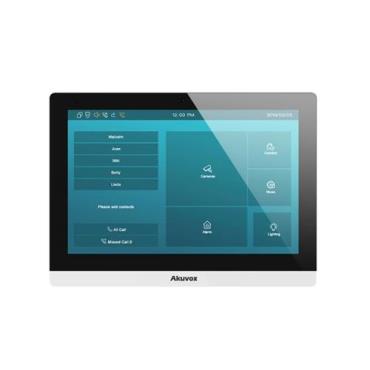

The C317A multifunctional communicator, with an Android operating system, provides audio and video communication with Door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 10-inch capacitive touch screen display.
At a Glance
Ultra-clear, stylish appearance
10” capacitive touch screen with energy saving mode
Built-in 1MP CMOS camera
Built-in Wi-Fi (2.4GHz, IEEE802.11 b/g/n)
Reception of a HD picture from the door communicator
Two-way communication with other units in the network, based on SIP v2.0 protocol
Powered by PoE or external source
Tamper resistant design
Touch Screen Display
Display Mode: Normally black, Transmissive
LCD Size: 10 inch (Diagonal)
Aspect Ratio: 16:9
Resolution: 1280x800
Contrast ratio: 800:1
Luminance: 350 cd/m ²
Viewing Angle: ±89° Left, ±89° Right, ±89° Upper, ±89° Lower
Touch Screen: Projected Capacitive
Camera
Camera: 1MP Camera, CMOS
Audio
Features: Built-in microphone and speaker
Video
Streaming Formats: H.264
Memory
RAM: 2GB
ROM: 8GB
Interface
Ethernet: 2x10/100 Mbps ports, auto-switching, auto-discovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant
RS485: 1 RS485 port
Alarm: Support 8 channels input
Relay Out: 2 Relay Out (NO/COM/NC)
Bell In: 1 Bell In
Memory Slot: 1 Micro SD slot
Environmental
Temperature: 14° to 112°F (-10° to 45°C)
Humidity: 10% to 90% (non-condensing)
Mechanical parameters
Dimensions (W x H x D): 251 x 182.5 x 22 mm
Application Scenario
Villas
Apartment complexes
Home automation systems
Modern interiors
