● Intuitive Android Operating System

● Alexa Integration

● Premium audio and video quality

● Home automation integration

● Android 6.0/SIP/RTSP/PoE

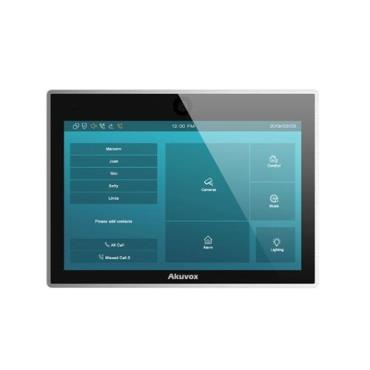

Akuvox smart indoor monitor IT83 is a multifunctional modern in-home intercom featuring Android OS 6.0 and 10-inch capacitive touch screen. It provides exceptional audio and video communication with door phone and room-to-room communication via SIP 2.0 protocol, and supports real-time entrance monitoring via ONVIF/RTSP. It comes with rich interface that enables easy integration with other digital systems, such as home automation and telehealthcare.

Above all, it is very user-friendly, offering simple wiring and autoprovisioning during installation and easy-to-navigate user interface that requires minimum training to operate.

At a Glance

Ultra clear, stylish appearance

10” capacitive touch screen with energy saving mode

Reception of a HD picture from the door communicator

Two-way communication with other units in the network, based on SIP v2.0 protocol

Powered by PoE or external source

Supports US or European electrical wall box mounting

Tamper resistant design

Touch Screen Display

Display Mode: Normally black, Transmissive

LCD Size: 10 inch (Diagonal)

Aspect Ratio: 16:9

Resolution: 1280x800

Contrast ratio: 800:1

Luminance: 350 cd/m ²

Viewing Angle: ±89° Left, ±89° Right,

Viewing Angle: ±89° Upper, ±89° Lower

Touch Screen: Projected Capacitive

Interface

RS485: 1 RS485 port

Alarm: Support 8 channels input

Relay Out: 2 Relay Out (NO/COM/NC)

Relay In: 1 Relay In

Memory Slot: 1 Micro SD slot

Memory

RAM: 2GB

Flash: 8GB

Communications

Ethernet: 2x10/100 Mbps ports, auto-switching, auto-discovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant

WiFi: Optional

Video

Streaming Formats: H.264

Audio

Features: Built-in microphone and speaker

Environmental

Temperature: 14° to 112°F (-10° to 45°C)

Humidity: 10% to 90% (non-condensing)

Mechanical Parameter

Dimensions (W x H x D): 251 x 182.5 x 22 mm

Application Scenario

Villas

Apartment complexes

Home automation systems

Modern interiors
