* 1/3 SONY high quality CCD with high definition

* 420/480/540 TVLINE optional

* S/N Ratio: ＞ 48dB, Auto Electronic Shutter: up to 1/100,000 sec.

* Auto AGC/WB/BLC & AES switchable

* Lens: 3.6mm (standard) & 6,8,12mm lens (optional)

* Special for multi-light or dark surroundings, such as: hotel, toll station and prison etc.

* Detail and clear monitoring pictures with naturally soft colors under little light

* Convenient for lens selection, different focal length and different type of lens can be selected, such as auto iris lens, manual zoom lens and IR sensing function lens.

Technical Data

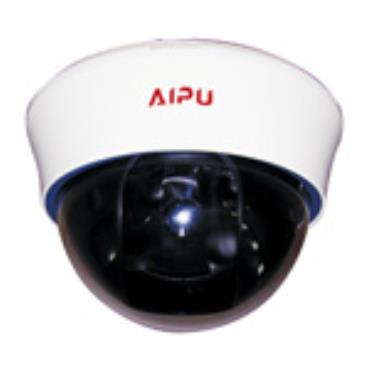

Model No. APG-DC200-03C

CCD Type 1/3" SONY Super-HAD CCD

Horizontal Resolution 540TVL

Effective Pixel PAL:752H×582V / NTSC:768H×494V

TV System PAL/NTSC

Minimum Illumination 0.8LUX/F1.2

S/N Ratio ≥48dB

Video Output 1.0Vp-p/75Ω

AGC AGC ON /OFF (switchable)

White Balance Auto tracking

Back Light Compensation BLC ON/OFF switchable

Exposure Control EE（Electronic Exposure）/AI（Auto Iris Lens） switchable

Electronic Shutter NTSC:1/60 to 1/100,000 sec.(ON/OFF) PAL:1/50 to 1/100,000 sec.

Gamma Correction 0.45

Sync System Internal Synchronization

Lens 3.6mm (standard) , 2.8mm/4mm/6mm/8mm/12mm (optional)

Power Requirements DC12V±5%

Operation Temperature -20℃~+50℃
