Ideal for CCTV plus audio or power, and PTZ CCTV camera control applications

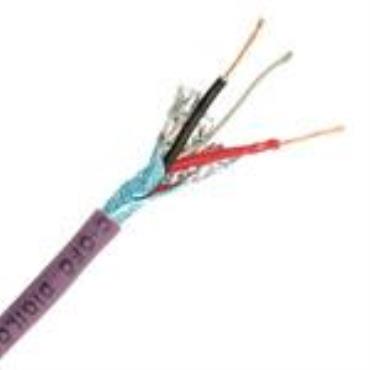

Structure:

Individual Shield

Stranded Tinned copper Conductor

Color coded PE/PP insulation

Twisted pair

100% aluminium/polyester foil shield

Tinned copper drain wire

PVC/LSZH/FR-PVC/ROHS jacket

Technical Data

Operation Temperature: -15°C to +70°C

Installation Temperature: ≥0°C

Rated Voltage: 300/300V

Standards

BS4737: Intruder alarm systems in buildings

NEC 800, UL: CM / CMR

Part No. Conductor Pair &

Conductor Structure Insulation mm Jacket

mm Conductor Resistance

@ 20°C Insulation Resistance

@ 70°C

AP-DATA-22-1 1*2*22 (7/30AWG)

7/0.254 mm 1.55 4.30 51 Ohms/km 2000 MOhms/km

AP-DATA-20-1 1*2*20 (7/28AWG)

7/0.32 mm 1.76 5.00 32 Ohms/km 2000 MOhms/km

AP-DATA-18-1 1*2*18 (16/30AWG) 16/0.254 mm 2.15 5.80 22 Ohms/km 2000 MOhms/km

AP-DATA-16-1 1*2*16 (26/30AWG) 26/0.254 mm 3.00 7.70 13.86Ω/km 2000 MOhms/km

AP-DATA-14-1 1*2*14 (41/30AWG) 41/0.254 mm 3.40 8.70 8.79Ω/km 2000 MOhms/km

AP-DATA-22-2I 2*2*22 (7/30AWG)

7/0.254 mm 1.25 6.10 51.55 Ohms/km 2000 MOhms/km
